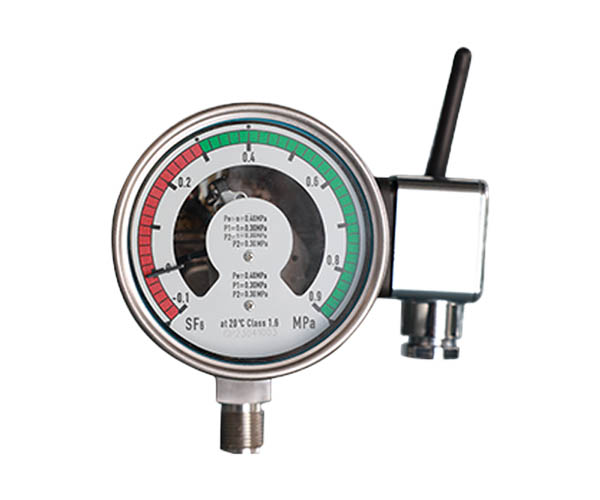

The Wireless SF6 Density Remote Transmitter is a high-precision device specifically designed for SF₆ gas monitoring in power systems. It requires no external power supply and uses inductive current to maintain long-term stable operation. SF₆ (sulfur hexafluoride) gas is widely used in high-voltage switchgear due to its excellent insulation and arc-extinguishing properties.
This product is suitable for SF₆ switch stations, GIS rooms, SF₆ laboratories, and all environments where SF₆ equipment is installed in power systems, covering a wide range of scenarios and with broad adaptability.
meter supports monitoring SF₆ or various mixed gases. Its internal oil-fillable design allows it to adapt to harsh environments with various vibrations, ensuring stable operation under complex working conditions.
support the State Grid power transmission and transformation equipment IoT sensor communication protocol, which can be seamlessly connected to various platform systems to achieve centralized data management and remote monitoring.
Wireless SF6 Density Remote Transmitter | |
Technical parameters | |
Power supply voltage | No power required |
Protection level | IP65 |
Shell material | 304 stainless steel |
SF₆ temperature range | -65℃~85℃ |
SF₆ pressure range | 0~1Mpa / -0.1~0.9Mpa |
Pressure accuracy (-40~85℃) | ±0.5% FS |
Temperature accuracy (-40~85℃) | ±1℃ |
P20 value accuracy (-40~85℃) | ±1% FS |
