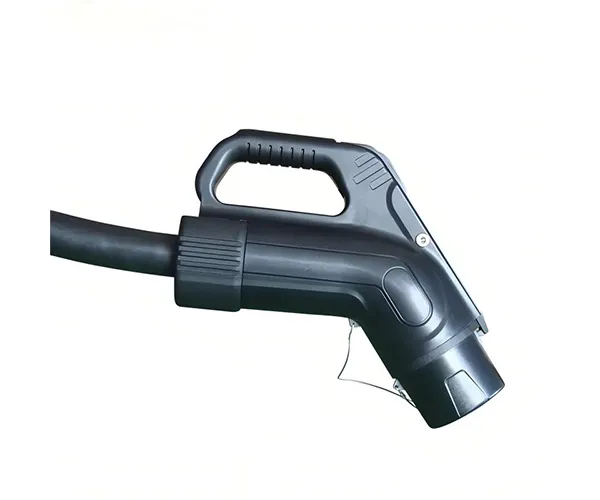

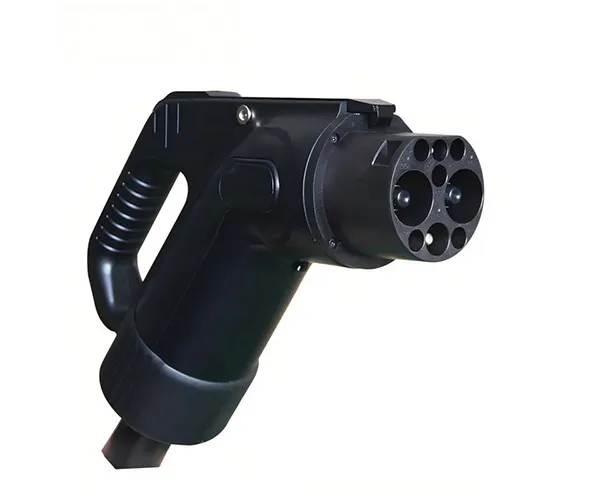

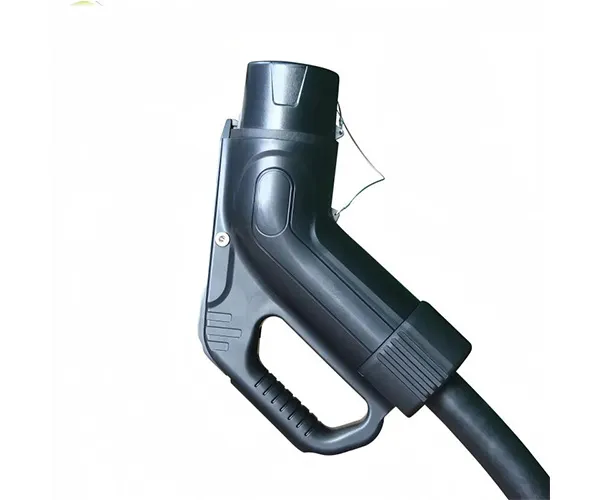

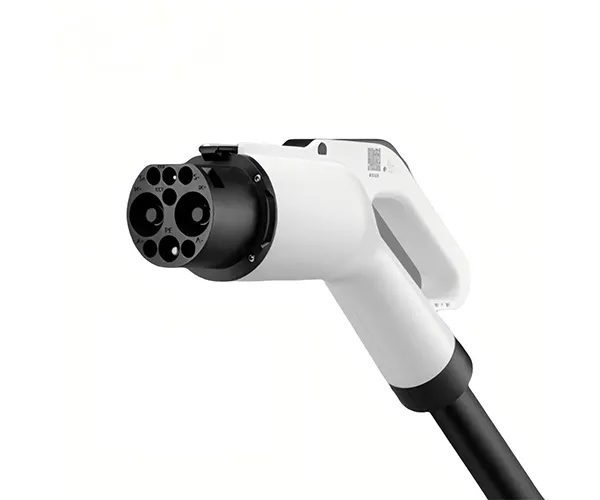

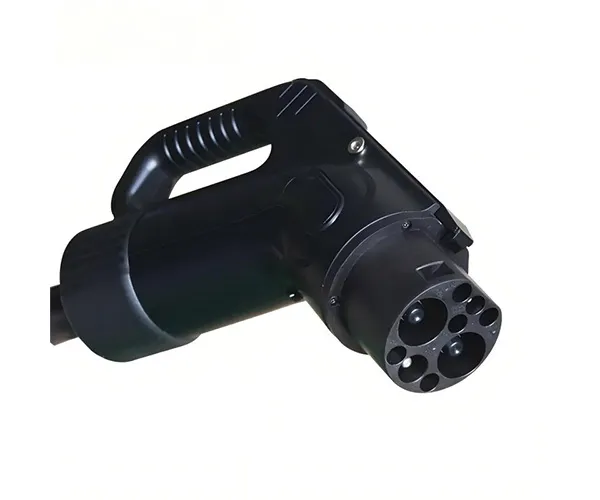

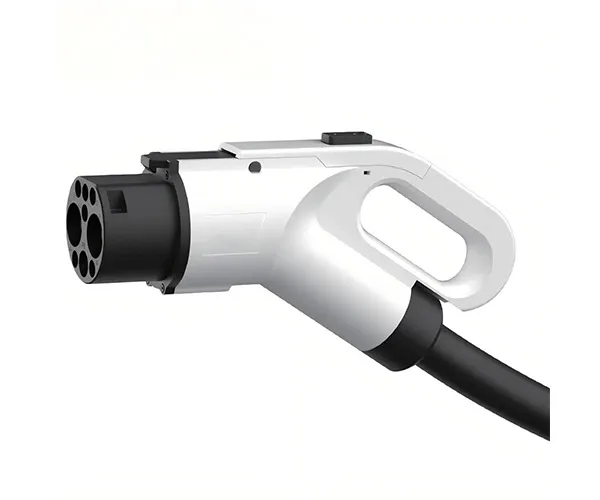

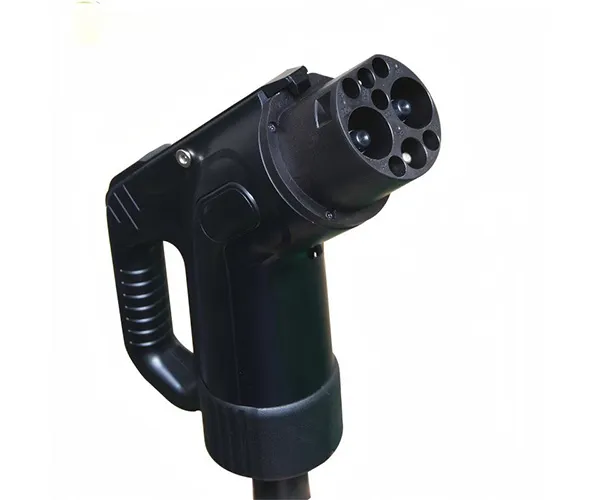

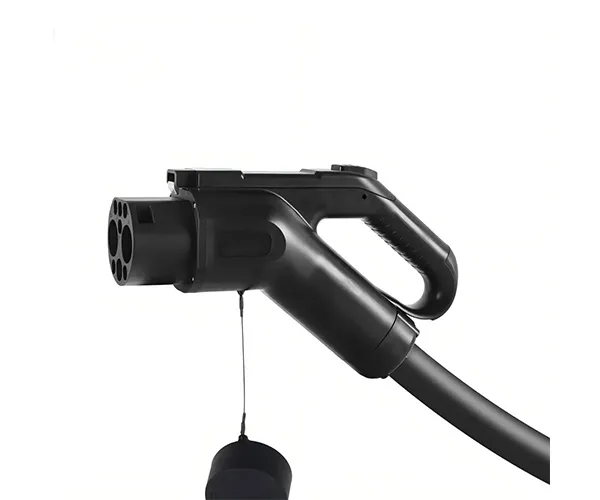

600A GBT DC Liquid-Cooled Charging Connector

Name: 600A GBT DC Liquid-Cooled Charging Connector
Brand: AUPINS TECHNOLOGY CO., LTD.

GB/T DC Charging Connector 600A GB/T Liquid-Cooled Electric Vehicle Charging Cable, suitable for Level 3 DC fast charging stations with liquid cooling systems. Utilizing a GB/T charging interface, it boasts a high power capacity of up to 400kW, providing fast charging for electric vehicles. Compliant with the Chinese GB/T charging standard, it features higher current carrying capacity and more stable performance, significantly reducing charging time for large electric vehicles.

 Get A Quote

FEATURES

Features of 600A GBT DC Liquid-Cooled Charging Connector

Faster charging speed

Liquid cooling technology enables higher power output, thereby significantly reducing charging time.

More durable

Efficient heat dissipation and robust construction extend the cable's lifespan.

Enhance security

Advanced safety features and rigorous testing ensure reliable and safe operation.

Improve user experience

Faster charging speeds and reliable performance enhance the overall charging experience for electric vehicles.

DATASHEET

Datasheet of 600A GBT DC Liquid-Cooled Charging Connector

600A GBT DC Liquid-Cooled Charging Connector
Technical parameters
Rated Voltage	1000V
Rated Current	600A
Insulation Resistance	≥500M0
Operating Temperature	-30°C to 50°C
Protection Degree	(inside the charging connector)IPX6/ (mated) IP55
Flame Retardant Grade	UI94 V-0
Insertion and Separation Forces	F<140N
Mechanical Lifetime	>10000 TIMES

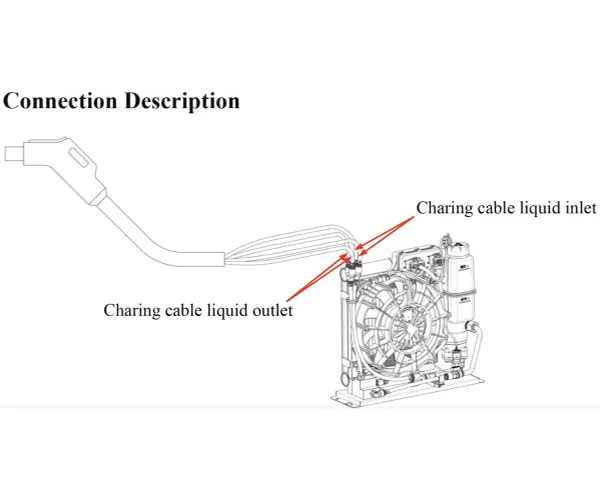

Cooling Power Size	2.4KW
Cooling Liquid Flow	2-6LPM
Terminal Working Temperature	90°C
Maximum Allowable Pressure	0.6 Mpa Max
