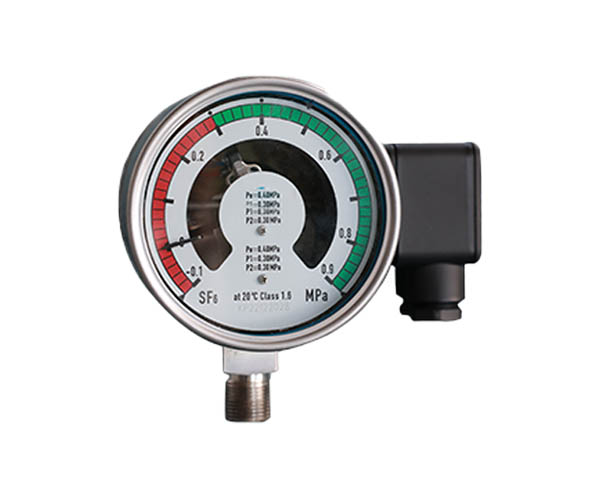

The Wired SF6 Density Remote Transmitter is a high-precision device specifically designed for monitoring SF₆ gas in power systems. SF₆ (sulfur hexafluoride) gas is widely used in high-voltage switchgear due to its excellent insulation and arc-quenching properties.
This product is widely used in SF₆ switch stations, GIS rooms, SF₆ laboratories and all environments where SF₆ equipment is installed in power systems, covering a wide range of scenarios and with broad adaptability.
meter supports monitoring SF₆ or various mixed gases. Its internal oil-fillable design can effectively adapt to harsh environments with various vibrations, ensuring stable operation and measurement accuracy under complex working conditions.
support the standard Modbus protocol and various customized protocols, allowing for flexible integration with different platform systems to meet diverse networking needs and achieve centralized data management and remote monitoring.
Wired SF6 Density Remote Transmitter | |
Technical parameters | |
Power supply voltage | DC24V |
Operating power | <1W |
Protection level | IP65 |
Shell material | 304 stainless steel |
SF₆ temperature range | -65℃~85℃ |
SF₆ pressure range | 0~1Mpa / -0.1~0.9Mpa |
Pressure accuracy (-40~85℃) | ±0.5% FS |
Temperature accuracy (-40~85℃) | ±1℃ |
P20 value accuracy (-40~85℃) | ±1% FS |
Communication methods | RS-485 |
Communication Protocol | ModbusRTU |
