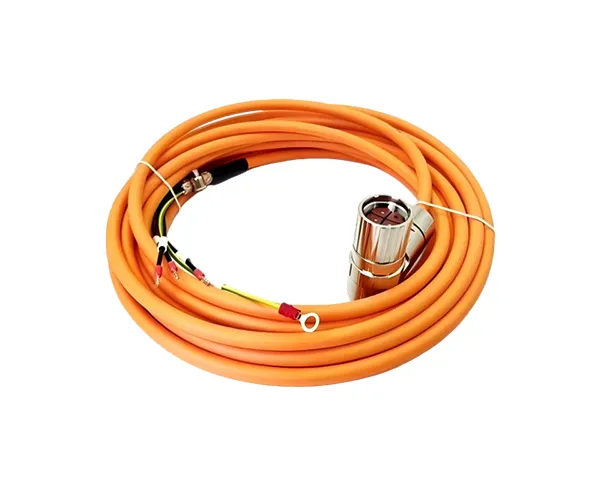

This cable connects the SINAMICS V90 servo drive to the SIMOTICS S-1FL6 servo motor. It features a 4×0.75 C conductor and is available in lengths from 3 to 15 meters, suitable for power transmission of servo motors up to 1kW . The cable uses original connectors, is a 4-core flexible wire with a 0.08mm tinned copper core, offering strong conductivity and anti-interference capabilities, and includes a tensile-resistant cotton cord. Custom lengths are available.

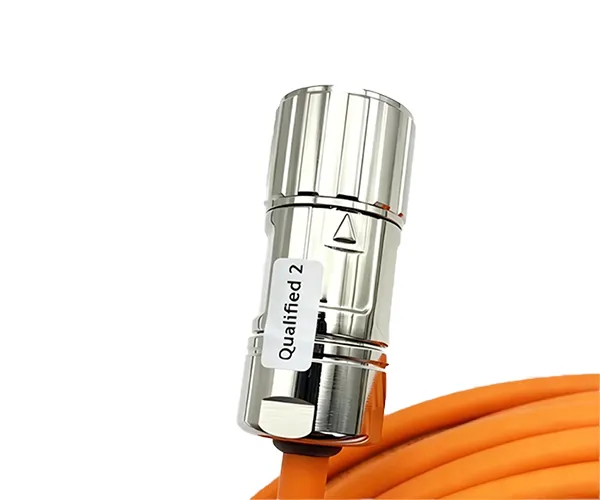

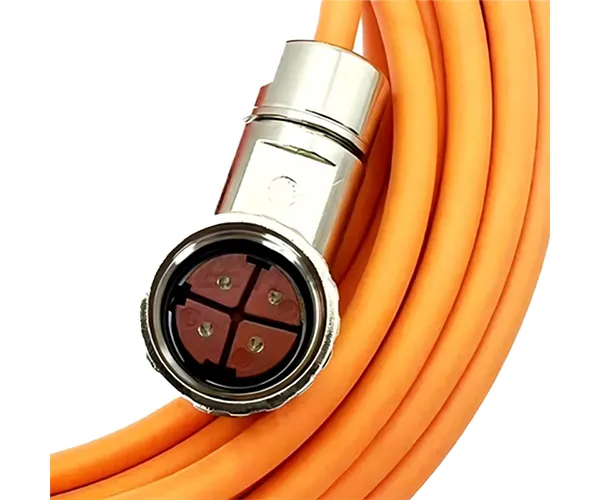

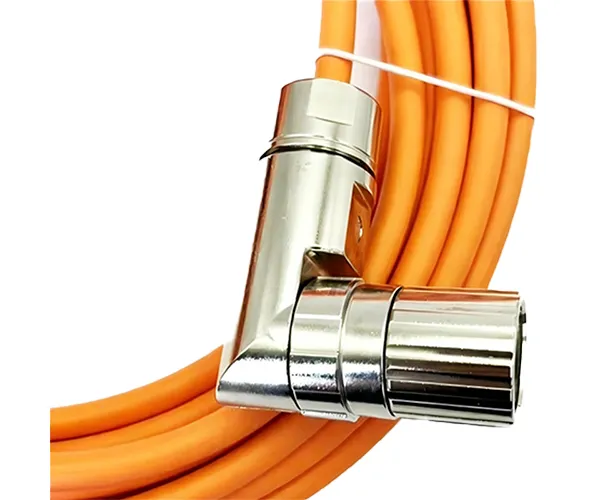

Specifically designed for the SINAMICS V90 230V servo system and SIMOTICS S-1FL6 motor, the prefabricated design eliminates the need for on-site wiring. The motor-side plug provides IP65 protection when closed, ensuring convenient and reliable installation.
The cable adopts a flexible conductor structure, which has excellent bending resistance and is suitable for cable chain and mobile installation scenarios. It can still maintain stable power transmission under frequent movement conditions.
The sheath material is oil-resistant, wear-resistant, and flame-retardant, enabling it to withstand harsh conditions such as oil stains and mechanical friction in industrial automation environments, effectively extending its service life.
With an operating temperature range of -15℃ to +80℃, it can work stably in various industrial temperature environments such as cold storage and high-temperature workshops.
The products comply with UL/CSA certification standards and RoHS environmental requirements, meeting the compliance needs of exported equipment and domestic industrial projects.
Siemens V90 servo motor power cable | |
Technical parameters | |
Weight: | 1.39kg |
For Use With: | SINAMICS V90 series |
Product Type: | Power cable |
Rated voltage (AC): | 300V/500V AC |
Connectors: | Bare end flying leads, Plug-in connector |
Smallest bending radius (fixed installation): | 6xdiameter |
Smallest bending radius (flexible installatior | 155mm |
Number of bends, max.: | 1,000,000 |
Tensile stress, max. Fixed installation: | 50 N/mm2 |
Tensile stress, max. Flexible installation: | 20N/mm2 |
Torsional stress: | Absolute 30%/m |
Cable Length: | 20m |
Material of the cable sheath: | PVC |
Type of insulation:Degree of protection: | PVC |
Operation with permanently installed cable: | -25°Cto +80°C |
Standard for behavior in fire: flame resistance: | IP20 |
Oil resistance: | EN 60332-1-1 to 1-3 |
Verification of suitability, CE marking: | EN 60811-2-1 (mineral oil only) |
Verification of suitability, UL approval: | Yes |
Verification of suitability, RoHS conformity: | Yes |
Product Type | Power Cable |
Rated Voltage | 300V /500V AC |
Connectors | Bare end flying leads, Plug-in connector |
Smallest Bending Radius | Fixed installation: 6 x diameter, Flexiable installation: 155mm |
Number Of Bends, Max. | 1,000,000 |
Tensile Stress, Max. | Fixed installation: 50 N/mm', Flexible installation: 20 N/mm2 |
Torsional Stress | Absolute 30%/m |
