Compliant with ISO15118 (TLS, PnC, AC), DIN70121, SAE, and CHADEMO communication protocol standards, it supports bidirectional communication (V2G, V2V protocols) between electric vehicles and the grid through UDS diagnostic services. It provides reliable and stable standard charging communication conversion solutions and more flexible private protocol solutions for automakers.
Compatible with 99% of global electric vehicles, meeting DIN70121 and ISO15118 standards; equipped with a complete V2G protocol stack, supporting HomePlug Green PHY 1.1 PLC communication and AC-PLC charging protocol system.
The hardware supports the upgrade of ISO15118-1/2/3 software protocols, featuring a local program upgrade function; it supports mainstream electronic locks (three-wire, four-wire) and signal detection, and supports waking up the BMS.
Support for exception handling and compatibility testing. The EVCC solution has been certified by both TUV and DEKRA.
It is capable of converting the national standard GB/T 27930-2015 charging protocol into the European standard DIN70121 and the American standard ISO15118.
Support plug-and-charge (requires ISO15118), automatically completing identity authentication and billing through digital certificates; when the vehicle is inserted, the identity information is encrypted and sent, and the charging station and the back-end system (operator/payment platform) verify the identity and payment information.

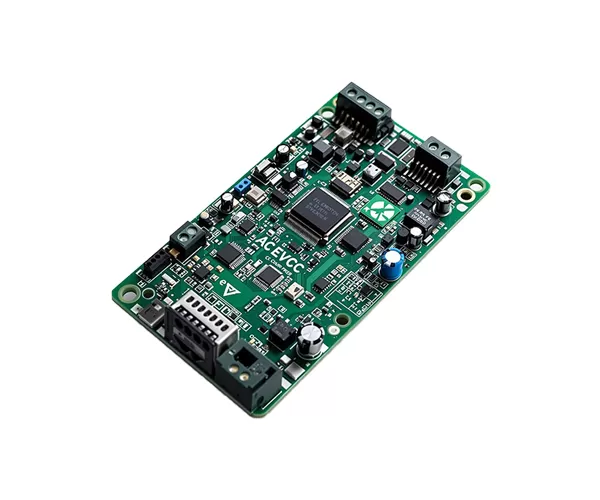

EVCC Test Kit | |
Specifications | |
Standards | DIN70121, ISO 15118-2, ISO 15118-20 |
Software | Windows / Linux GUI |
Compatibility | SAE J2954 |
Report Format | PDF, CSV, XML |
Interface | PLC, CAN, Ethernet |
Update | OTA software update |
Full DIN70121 & ISO 15118-2/20 test coverage | |
Automated conformance test scripts | |
Real-time protocol analysis | |
Plug & Charge (PnC) test scenarios | |
V2G test mode support | |
Detailed test report generation | |
