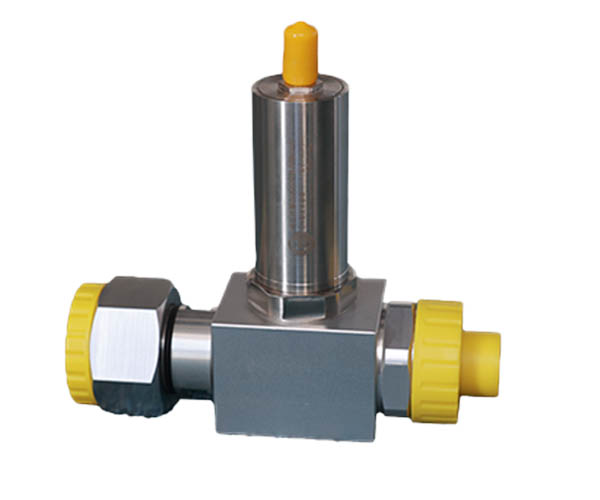

The Wied SF6 Sensor is a high-precision device specifically designed for monitoring SF₆ gas in power systems. SF₆ (sulfur hexafluoride) gas is widely used in high-voltage switchgear due to its excellent insulation and arc-extinguishing properties.
This product is widely used in SF₆ switch stations, GIS rooms, SF₆ laboratories and all environments where SF₆ equipment is installed in power systems, covering a wide range of scenarios and with broad adaptability.
sensor supports monitoring SF₆ or various mixed gases, meeting the monitoring needs of different application scenarios.
support the State Grid power transmission and transformation equipment IoT sensor communication protocol, enabling seamless integration with various platform systems to achieve centralized data management and remote monitoring.
Wied SF6 Sensor | |
Technical parameters | |
Power supply voltage | DC24V |
Operating power | <1W |
Protection level | IP65 |
Shell material | 304 stainless steel |
Supply Voltage | 12V DC |
Operating Temp | -40°C to +85°C |
SF₆ temperature range | -65℃~85℃ |
SF₆ pressure range | 0~1Mpa / -0.1~0.9Mpa |
Pressure accuracy (-40~85℃) | ±0.5% FS |
Temperature accuracy (-40~85℃) | ±1℃ |
P20 value accuracy (-40~85℃) | ±1% FS |
Communication methods | RS-485 |
Communication Protocol | ModbusRTU |
