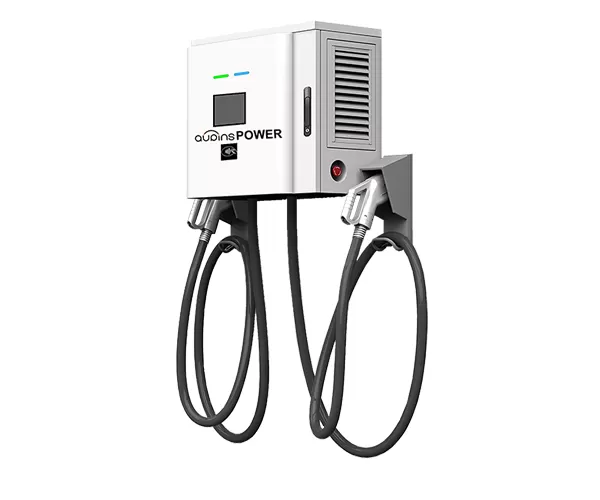

AUPINS EF040 Series Public DC Fast EV Charger offers both wall-mounted and pole-mounted installation options, supports both CCS Combo-2 and CHAdeMO charging standards, and is compatible with a variety of electric vehicles with power outputs up to 40kW.
Equipped with CCS Combo-2 and CHAdeMO connectors, allowing simultaneous charging for different vehicle types.
7” full-color LCD touch screen supports multilingual interaction, real-time monitoring, and diagnostics.
Wall-mounted and pedestal options available for various site conditions.
Built-in over/under-voltage, overload, leakage, grounding, and lightning surge protection.
RFID authentication, mobile app control, and optional Nayax contactless credit card payment.
Supports OCPP 1.6J with WS & WSS encryption; upgradable to OCPP 2.0.
Up to 94% conversion efficiency and 0.99 power factor at nominal output.
IK10 impact protection and IP54-rated enclosure suitable for outdoor public environments.
Remote monitoring, remote diagnosis and remote upgrade.
AUPINS EF040 Series Public DC Fast EV Charger | |
System | |
Charging type | Mode 4 |
Dimension (H x W x D) | 600 x 700 x 363mm, 1600 x 700 x 363mm (pedestal mount) |
Enclosure protection grade | IP54, IK10 |
Cable routing | Bottom inlet and outlet wiring |
Net weight | 125kgs, 145kgs (pedestal mount) |
Charging standard | IEC 61851-23, CHAdeMO |
Certificate | DEKRA certified CE, EN 61851-23:2014 + EN 61851-23:2014/AC:2016-06, EN61851-1:2011 |
Protection | Over/under voltage protection, overload protection, current leakage protection, grounding protection,lightening surge protection |
Accessories | Connector holder, wall-mounting bracket, ground-mounting pedestal |
User interface | |
User authentication | RFID, Nayax credit card (optional), Mobile APP |
Display | 7” LCD touch screen |
Support languages | English, Italian, Czech, Polish, Russian, Spanish, Romanian, Thai, German, French, Dutch (other languages upon request) |
Network interface | Ethernet, GPRS and LTE (optional) |
Protocol | OCPP 1.6J (WS & WSS encryption), future upgradable to 2.0 |
Environmental | |
Working temperature | -25°C – +50°C, derating from 50°C to 75°C |
Working humidity | 5% – 95% non-condensation |
Altitude | <2000m |
Cooling | Fan cooling |
Input | |
Input voltage | 400Vac +/-10%, 50/60Hz, 3-phase + neutral + PE |
Max. input current | 65A |
Power factor | 0.99 at nominal output |
Efficiency | 94% at nominal output |
Output | |
Max. DC output power (single charging) | 1.CCS: 40kW CHAdeMO: 40kW 2.CCS: 40kW |
Max. DC output power (simultaneous charging) | 1.CCS: 20kW CHAdeMO: 20kW 2.CCS (1): 20kW CCS (2): 20kW |
DC output voltage range | 1. CCS: 200 – 1000VDC CHAdeMO: 200 – 500VDC 2. CCS: 200 – 1000VDC |
DC output current range (single charging) | 1. CCS: 0 – 125A CHAdeMO: 0 – 125A 2. CCS (1): 0 – 66.7A CCS (2): 0 – 66.7A |
DC output current range (simultaneous charging) | 1. CCS: 0 – 66.7A CHAdeMO: 0 – 66.7A 2. CCS (1): 0 – 66.7A CCS (2): 0 – 66.7A |
Number of plugs | 2 |
Outlet connectors | CCS Combo-2 CHAdeMO JEVS G105 CCS Combo-2 |
