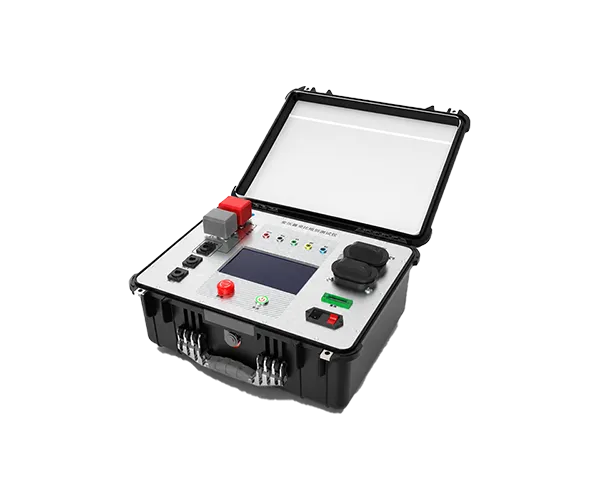

Portable CCS1/CCS2 EV Simulator

Simulate the EV. Validate the Charger. Troubleshoot Faster.Simulate vehicle-side CCS communication and verify DC charger communication, charging sequences, control logic and fault responses—without repeatedly using a real electric vehicle.


DATASHEET

Datasheet of Portable CCS1/CCS2 EV Simulator

Portable CCS1/CCS2 EV Simulator

Specifications

Operating Voltage

AC 220V ±15%

Display

10-inch touch screen

Operating Temperature

-30°C to 70°C

Test Object

European standard, American standard, and NACS DC charging stations


Maximum Test Voltage


DC 1000V

European/American Communication Protocols

Charging communication complies with ISO 15118 and DIN 70121. Power transmission complies with IEC 61851. Vehicle inlet complies with IEC 62196.

Interface Design

Touch screen design with freely configurable charging standard interfaces. European and American interfaces support both AC and DC applications.

User Interface

Simple and intuitive interface with bilingual Chinese and English support for easy operation.

Message Storage

Real-time recording and USB export of CCS1/CCS2 charging-session data, including PLC communication logs, protocol messages, charging states, timestamps, warnings and fault events for ISO 15118 and DIN 70121 analysis.

Vehicle Message Simulation

Vehicle-side message content and message cycles can be fully configured to simulate various vehicle communication scenarios.

Communication Data Acquisition

European and American standards can obtain communication data directly through the EVCC host computer using a CAN box.

Automatic Aging Test

SOC can automatically increase, and charging duration can be set to enable automatic aging test functions.
