françaisSECC-DC PLC Charging Pile Controller Series
High-performance SECC QC PLC module, specially designed for the next-generation electric vehicle infrastructure, enables efficient DC fast charging communication and control.
High-performance SECC QC PLC module, specially designed for the next-generation electric vehicle infrastructure, enables efficient DC fast charging communication and control.
Completely adheres to the European standard DIN70121 and the American standard ISO15118, and conducts comprehensive compatibility tests for domestic and foreign European and American standard vehicle models.
It is capable of converting the national standard GB/T 27930-2015 charging protocol into the European standard DIN70121 and the American standard ISO15118.
Equipped with a monitoring system, capable of snapshot storage for erroneous data; provides an open interface
Through comprehensive EMC and electrical performance tests, we assist the companies in passing the CE and UL tests; the SECC solution has been certified by both TUV and DEKRA.

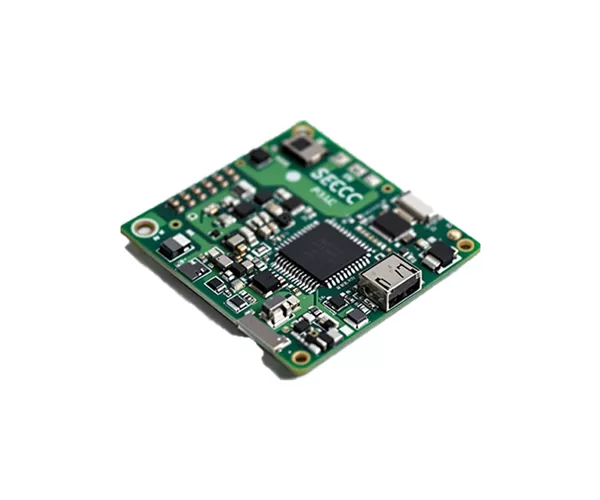

SECC-QC PLC | |
Specifications | |
Protocol | DIN70121, ISO 15118-2, ISO 15118-20 |
Communication | PLC (HomePlug GreenPHY) |
Interface | CAN, UART, SPI |
Certification | CE、FCC、RoHS |
Supply Voltage | 12V DC |
Operating Temp | -40°C~ +85°C |
Dimensions | 80x60x15mm |
Supports DIN70121 & ISO 15118-2/20 | |
High-speed PLC communication | |
Compact form factor for easy integration | |
Supports V2G bidirectional charging | |
Low power consumption design | |
Wide operating temperature range | |
