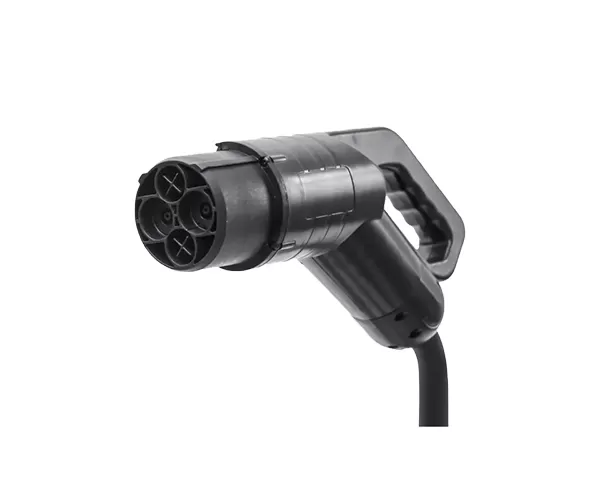

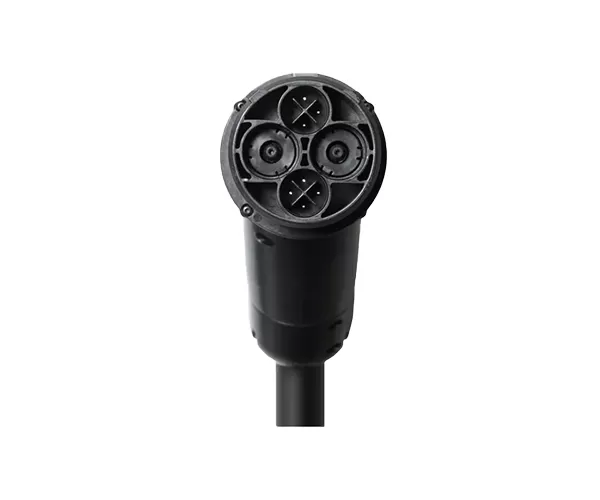

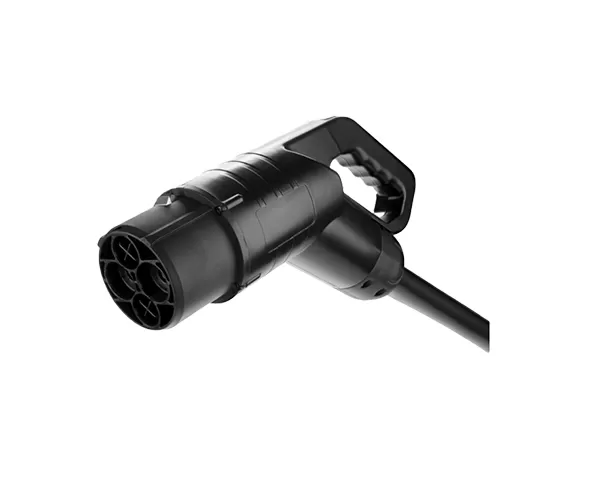

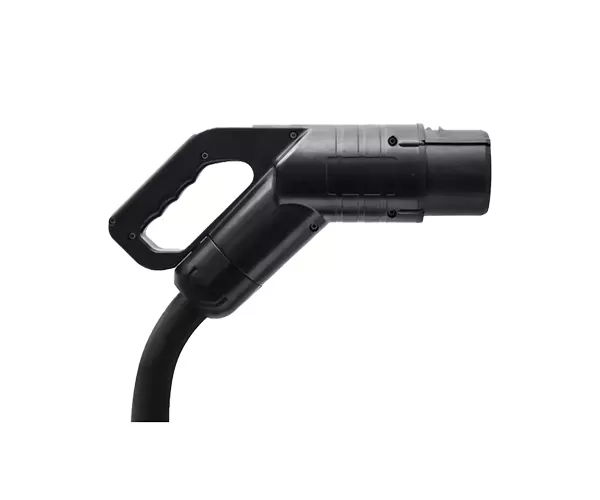

The AUPINS CHAdeMo EV DC Charging Cable features an ergonomically designed handle for a comfortable grip and easy plugging/unplugging. It also includes a bayonet-type anti-loosening locking device to ensure a stable and reliable connection. The built-in switch and electronic lock module further enhance its stable performance and facilitate maintenance and replacement.
PT1000 thermal sensor for DC+ and DC-. 12V or ±12V solenoid lock, solenoid location status detect signal output.
Manual emergency unlock key.
Reliable pluggable design, compact structure, easy installation.
Excellent environmental adaptability. Wide temperature range design from -20℃ to 45℃, easily handling various climates.
Specifications of CHAdeMo DC Charging Charging Cable | |
Mechanical Performance | |
Rated Mating Cycles | >10000 trips (no load) |
Material | TUP or TPE cable material optional |
Certificate | CE certificated (with TUV mark) |
Plug in detection | if not plug in, solenoid will not lock |
Environment Performance | |
Protection degree | IP54 |
Flame class | UL94-V0 |
Electrical performance | |
Maximum Rated Voltage | 600Vdc |
Withstand voltage | Nominal600V (Certificated), 1000V Max extend |
Ampere | 200A (70mm²-Dia36mm±1), 150A(50mm²-Dia31mm±1), 125A(35mm²-Dia30mm±1), 100A(25mm²-Dia26mm±1), 80A(16mm²-Dia23mm±1) |
