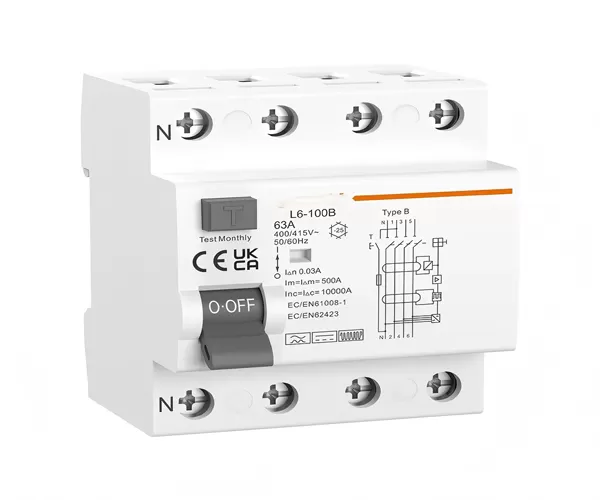

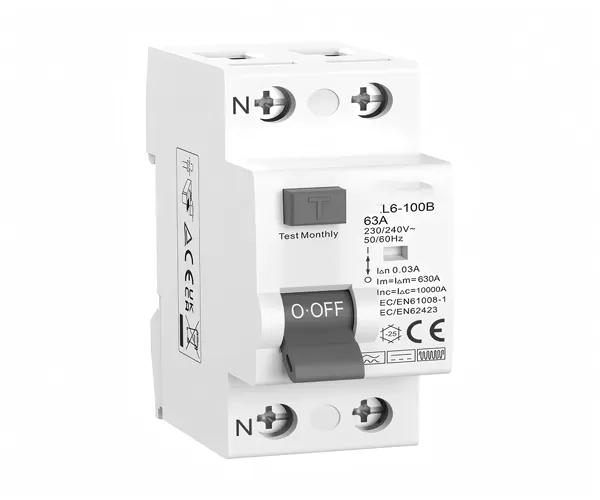

APL6-100B Type B Residual Current Circuit Breaker(RCCB)

AP Type B Residual Current Operated Circuit Breaker (RCCB), with a rated current of 100A and the ability to detect a wide range of leakage currents, is a rugged and durable RCCB ideal for high-power applications such as industrial environments, renewable energy systems, and electric vehicle charging infrastructure. The APL6-100B ensures enhanced safety and reliability, protecting people and equipment from the risk of leakage current.


DATASHEET

Datasheet of APL6-100B Type B Residual Current Circuit Breaker(RCCB)

Technical Data

Standard

IEC61008-1, IEC62423

Protection

Ground fault

Type of trip

Electro-magnetic

Type of protection (electric leakage)

B

No.of poles

2P(1P+N), 4P(3P+N), N Pole on left

Rated voltage (Ue)

2P(1P+N):110/230/240V~, 4P(3P+N):240/400/415V~

Insulation voltage Ui

500V

Rated currents (In)

16,25,32,40,63,80,100A

Rated sensitivity currents I△n

30,100,300mA

Residual current off-time under I△n

≤ 0.1s

Rated residual making and breaking capacity(I△m)

500A(In≤50A), 10In(In>50A)

Rated frequency

50/60Hz

Rated breaking capacity

10,000A

SCPD fuse

10000

Rated impulse withstandard voltage(1.5/50) Uimp

4,000V

Dielectric test voltage at Ind. Freq.for 1 min

2.5kV

Electrical life

2,000 Cycles

Mechanical life

4,000 Cycles

Contact position indicator

Yes

Ground fault indicator

Yes

Protection degree

IP20

Ambient temperature

-25℃ to +40℃, Max.95% humidity

Terminal connection type

Cable/Pin-type busbar/Fork-type busbar

Max.terminal size for cable

35mm2

Max.tightening torque

2.5N.m

Installation

Mounting on 35mm DIN rail

Connection

From top and bottom
