The OP-0511 DC control unit is a controller developed for DC charging piles, focusing on high integration and extreme energy efficiency. It supports dual-gun parallel charging, with a maximum charging capacity of 600A; its energy consumption is less than 3%, effectively reducing operating costs. It also supports remote OTA upgrades and maintenance, saving you on maintenance costs.
Integrates input/output, communication, analog signal processing, insulation detection, and control guidance into one unit, significantly reducing the space occupied by the charging pile.
High EMC stability, reaching level 4 electromagnetic compatibility.
Enables rapid deployment and monitoring of your own charging network.
Compatible with all vehicle models conforming to both old and new national standards of GB/T 27930; compatible with LCD screens from mainstream manufacturers on the market; compatible with all meters conforming to DL/T 645 and MODBUS protocols.

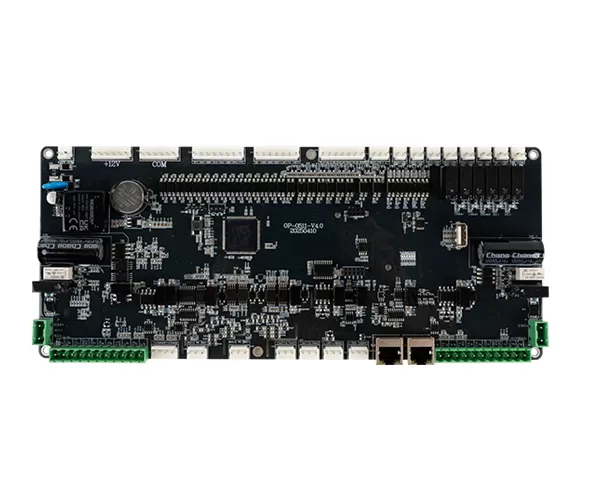

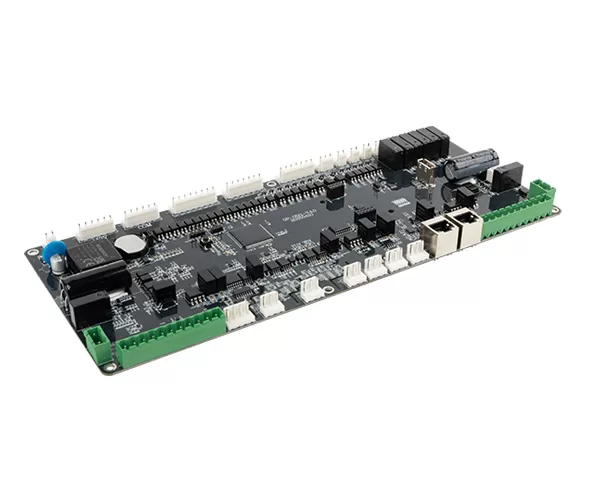

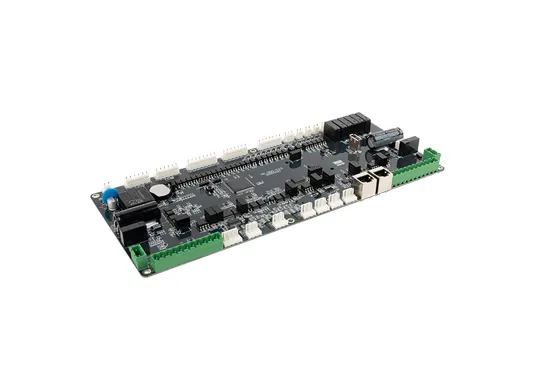

Specifications of AP-0511 EV DC Charging Pile Controller Series |
Main control board size |
310mm(length)×131mm(width)×20mm(height) |
Product Functions |
(1) It can complete the charging interaction with the BMS, control the charging status of the charger, collect operation data, and automatically shut down in abnormal conditions |
(2) It can be applied to various DC charging piles such as one-machine one-charge type, one-machine time-sharing dual-charge type, one-machine bus-connection dual-charge type,one-machine full power distribution dual-charge type, rectifier split type, and group charging type. |
(3) It is equipped with an electronic lock control for the charging gun and temperature detection. The detection and control of each charging gun work independently. |
(4) Compatible with power modules from Shenghong, Yingfeiyuan, Youyou, Yonglian, Tonghe, Xingyuan Borui, etc. |
(5) Compatible with Diwen, Xinruida and Xinxian touch screens to complete human-computer interaction functions; |
(6) Support serial port card readers to complete the card swiping billing function; |
(7) Integrated 2-channel battery voltage collection function; |
(8) Integrated 2-channel control and guidance functions;/Integrated 2-channel control and guidance functions; |
(9) It can record charging data, with a maximum of 500 charging data records. |
(10) It has a background communication function and can communicate wirelessly with the background monitoring system to transmit status and related data. Currently, it supports monitoring platforms such as Cloud Fast Charging, Dakake Cloud, Weijing Cloud, and Xiaoju. |
(11) Integrated Ethernet function; (Optional) |
(12) Integrate and expand 2G and 4G functions. (Optional) |
(13) Integrated NFC card reader function. (Optional) |
(14) The main control board supports direct connection of 12V/24V auxiliary sources without the need for additional intermediate relays. |
