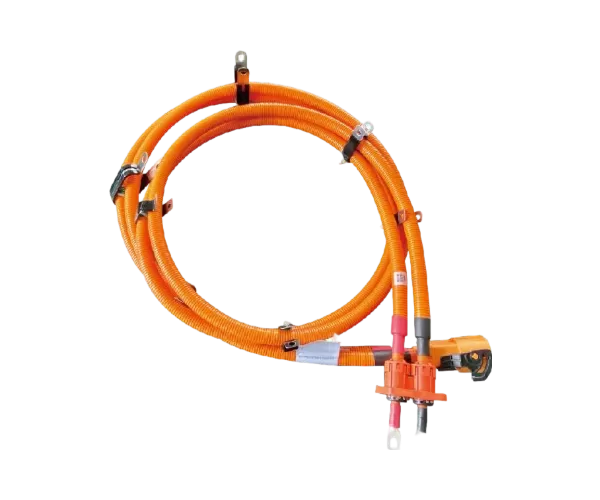

Motor Wiring Harness

Name: Motor Wiring Harness
Brand: AUPINS TECHNOLOGY CO., LTD.

AUPINS motor wiring harnesses are designed for efficient operation of drive systems. Through precise layout and rigorous testing, electromagnetic interference and resistance are effectively reduced, ensuring efficient and stable current transmission. The entire EV wiring harness uses high-quality connectors from Amphenol and other manufacturers, as well as flame-retardant materials, and integrates overcurrent protection to ensure safe and reliable connections under complex operating conditions, safeguarding motor performance over time.

 Get A Quote

FEATURES

Features of Motor Wire

High-Reliability Connections and Materials

The interface uses high-quality connectors from Amphenol and other manufacturers, maintaining stable signal transmission even after repeated plugging and unplugging

Continuous Performance Guarantee

Specifically developed for the harsh environments of new energy vehicles, balancing mechanical strength and electrical safety, supporting long-term, efficient operation of the drive system

Double Insulation for Enhanced Safety

The sheath and insulation layer use cross-linked polyethylene material, irradiated for high toughness, resistance to breakage, and flame retardancy

UL/TÜV Official Certification

Products are manufactured strictly according to official standards, eliminating shoddy workmanship and ensuring reliable quality

DATASHEET

Datasheet of Motor Wiring Harness

Specifications of Motor wire
Mechanical Performance
Mating/Extraction Life	≥10000 cycles
Mating/Extraction Force	100N≤F≤140N
Environment Performance
Operating temperature	-40℃ ~ +125℃
Protection degree	IP67
Electric Shock Protection Rating: IP2XB	IP2XB
Corrosion Resistance	48H Salt Spray Test
Waterproof Sealing	IP67
Flame Retardant Rating	UL94 V-0
Electrical performance
Rated Voltage	800V DC
Rated Current	80A/125A
Insulation Resistance	≥200MΩ
Insulation Withstand Voltage	2500V AC
