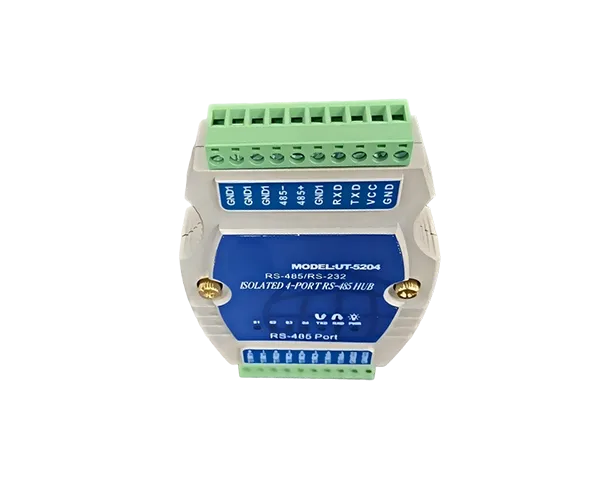

UT-5204 Isolated RS-232

Check whether the IEC61850 thread is running normally, whether the remote communication link is unobstructed, and whether devices such as switches and gateways are working properly.


DATASHEET

Datasheet of UT-5204 Isolated RS-232

UT -5204 Isolated RS -232

Interface standards and ports

Interface Standard

RS -232C, RS -485 (compliant with EIA/TIA)

Input port

1 RS --232 port + 1 RS- -485 port (sharing the same input terminal)

Output port

4 fully isolated RS --485 channels

Isolation methods

Opto-isolation

Isolation voltage

2500 Vrms

Communication parameters

Communication rate

300 bps~115200bps, adaptive (no manual setting required)

Maximum transmission distance:

5000 meters (@9600bps, using twisted pair or shielded cable)

Work mode

Half-duplex, automatic flow control, no need for RTS hardware flow control signals

Power supply and power consumption

Power input

DC 9V ~ 30V

Power consumption

≤ 150 mA (approximately 1.35W at 9V)

Protection performance

RS 232 port

±15 kV ESD protection

RS 485 port

Each line 600 W surge protection (TVS transient suppression)

Physical Specifications

Installation method

DIN rail (standard 35mm rail)

Overall dimensions

120x80x25mm (width x depth x height)

Wiring method

Green pluggable terminal blocks (for quick and easy field wiring)

Environmental parameters

Operating temperature

-40°C to +85°C (Industrial wide temperature range)

Storage temperature

Same operating temperature range (standard)

relative humidity

Recommended concentration: 5%~95% (non-condensing)
