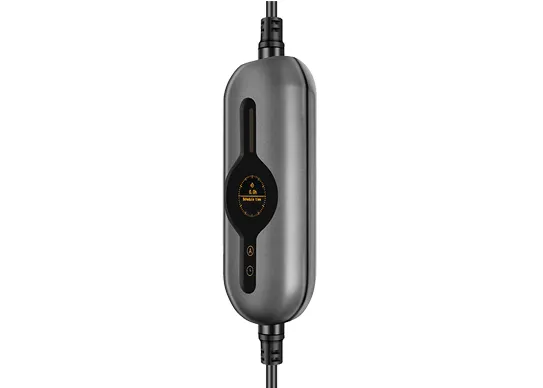

AUPINS T3 Series Portable Charger Mode2 Pro
AUPINS T3 Series Portable Charger Mode2 Pro

AUPINS T3 Series Portable Charger Mode2 Pro

AUPINS T3 Series Portable Charger Mode2 Pro is a high-performance EV charging solution designed for drivers who prioritize efficiency, durability, and safety. Supporting all Type 1 (SAE J1772) , Type 2 (IEC 62196), Tesla NACS, GBT connectors, it offers flexible power options and multiple plug types for use across homes, workplaces, and on-the-go scenarios.

DATASHEET

Datasheet of AUPINS T3 Series Portable Charger Mode2 Pro

AUPINS T3 Series Mode2 Portable EV Charger

Specification

Model T3

Connector and Electrical Performance

Input Voltage / Output Voltage

380~450V AC

1.8" LCD Round Shape Color Screen

Input Frequency

50/60Hz

AC Power Output Rating

9.6kW/11kW/22kW

Output Current

6/8/10/13/16/25/32/40A (Customizable)

Power Plug Options(Socket)

CEE, NEMA 14-50 (customizable per region)

Charging Connector Type

Type 2 (EU Standard),GBT connector, J1772 Type 1,NACS Connector

Safety Features


Ingress Protection

IP66


Impact Protection

IK10

Electrical Protection

Over/Under voltage protection, Surge protection, Over temperature protection

Leakage Protection, Lightning, Over current protection

RCD Type

Type A 30mA AC + 6mA DC

Environment Temperature

-30°C~50°C


Certifications

CE, RoHS,TUV, FCC, CB

Function

Current Adjusting

Yes

Ethernet/WIFI/4G/Bluetooth

Yes


LED Indicator Light

Yes


LCD Display Screen

Yes


Touch Button

Yes


Time Setting

Yes


Time Delay Setting

Yes
