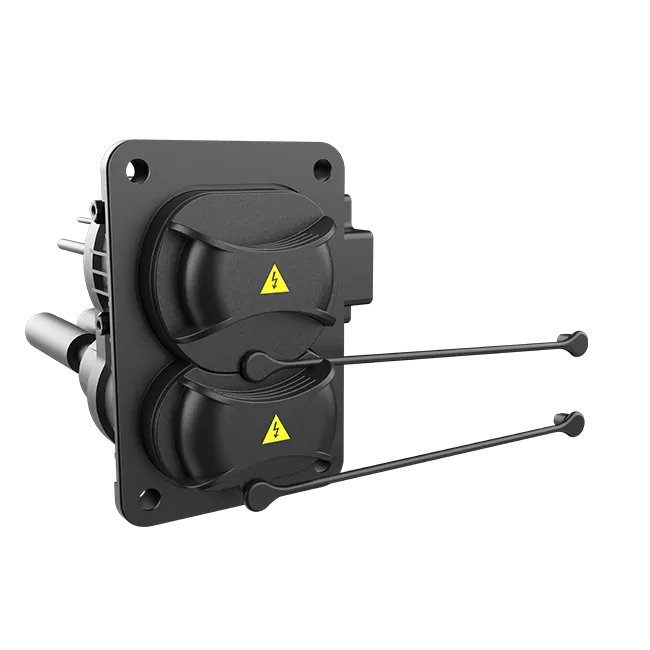

CCS2 EV Charging Socket
CCS2 EV Charging Socket

CCS2 EV Charging Socket

IEC Charging Socket conforms to the provisions and requirements of IEC62196-2 2016. The EV Charging Socket has efficient charging and safety protection functions, built-in overheat protection, and a short circuit power-off system, providing all-around protection for your charging process. The appearance design is compact and easy to install, suitable for home and commercial use.

The AUPINS CCS2 charging socket is a vehicle-side Combo 2 inlet for AC and DC charging. DC current options are 125 A, 150 A, and 200 A, with a rated DC voltage of 1,000 V. The datasheet also shows the AC ratings and the protection levels for the covered and mated conditions.

When requesting a quote, share your required DC current and installation dimensions so we can confirm the inlet configuration for your vehicle.




DATASHEET

Datasheet of CCS2 EV Charging Socket

Specifications of CCS2 Charging Socket

Mechanical Performance

Insertion and extraction force

<100N

Mechanical life

≥10,000 times (no load)

Electronic lock life span

30,000 times (rated voltage (12V/24V optional), power-on time 300ms, normal temperature)

Environment Performance

Working temperature

-30℃~50℃

Protection level

IP54 when the cover is closed, IP55 when inserting the gun; IP65 for the electronic lock; IP67 for the cable outlet at the end of the charging stand

Electrical performance

Rated voltage

AC input 250V.ac;DC input 1000V.dc

Rated current

AC input: 16A, 32A;DC input: 125A, 150A,200A

Insulation resistance

>1000MΩ (500V.dc)

Withstand voltage performance

3000V.ac
