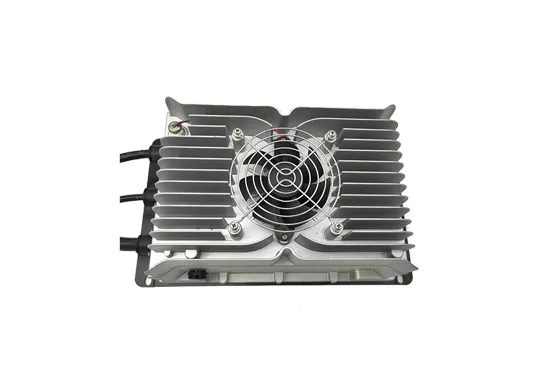

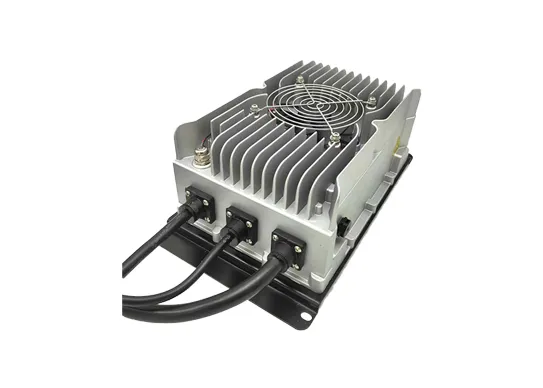

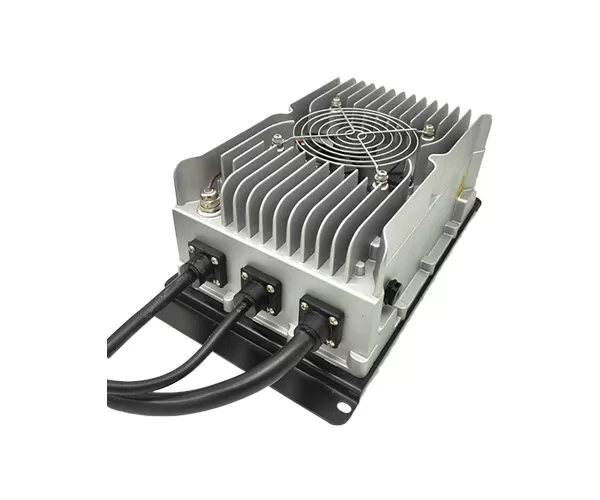

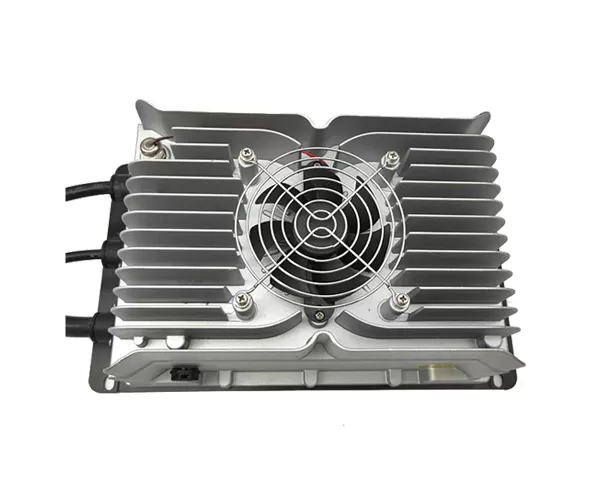

2KW On-board Charger Assembly
2KW On-board Charger Assembly
2KW On-board Charger Assembly
2KW On-board Charger Assembly

2KW On-board Charger Assembly

AUPINS 2kW On-board Charger Assembly is a compact and efficient charging solution designed for a variety of electric vehicles. Utilizing fully digital control and high-performance silicon carbide (SiC) devices, the charger features intelligent operation, robust protection functions, and superior system stability. The electrical components are housed in a die-cast aluminum casing (IP67 protection rating) and automotive-grade components, providing high power density, a lightweight design, and reliable performance.

DATASHEET

Datasheet of 2KW On-board Charger Assembly

Specifications of 2kW On-board Charger Assembly

Mechanical Performance

Operating Noise

≤60dB

Product size (mm)

149*291*113

Product Weight

≤4kg

Environment Performance

Operating Ambient Temperature

-20°C~ +65°C

Relative humidity

5%~95%

Dust proof and waterproof

IP67

Cooling Method

Forced-Air Cooling

Communication Function

CAN network

Charging Function

Receive charging instructions to charge normally; No command charger is in standby state

Over and Under Voltage Protection:Input over- and under-voltage shutdown can be self-recovery, output over andunder voltage shutdown can be self-recovery

Output Reverse Connection and Short Circuit Protection: Output short circuit and reverse connection shutdown can be self-recovery

Over Temperature Protection: When the heat sink temperature is higher than 75°C, it will reduce the output power. And it will disconnect the circuit when the temperature is higher than 95°C. It will restore the output when the charging temperature is lower

than 85°C

Electrical performance

Rated Output Power

2000W

Input Voltage Range

90VAC~265VAC

Input frequency range

46~65Hz

Starting Impule Current

≤10A

Input power factor

≥0.99 (@220Vin, Pomax,

Voltage/Current Regulation

±1% & ±5%

Output Response Time

≤5s

Typical Efficiency

≥94%

Terminal temperature rise

<50K

Withstand voltage

2000V
