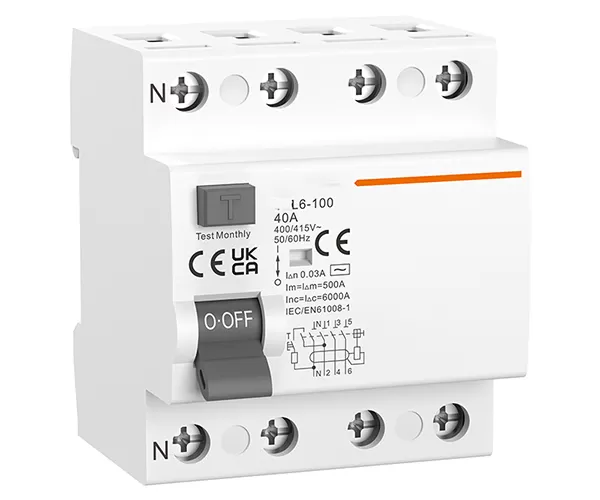

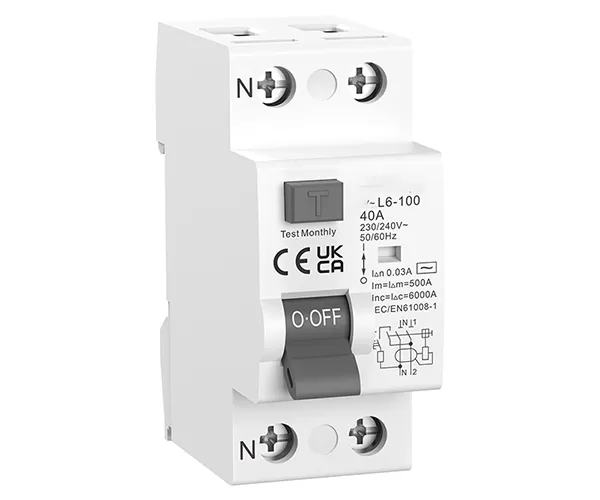

APL6-100 Magnetic Type Residual Current Circuit Breaker(RCCB)

The APL6-100 is a high-capacity magnetic leakage current circuit breaker, compliant with IEC 61008-1 standards, designed for industrial and commercial applications. It can handle currents up to 100A, providing reliable leakage current protection and ensuring the safety of personnel and equipment in high-power environments.


DATASHEET

Datasheet of APL6-100 Magnetic Type Residual Current Circuit Breaker(RCCB)

Technical Data

Standard

IEC/EN61008-1

Protection

Ground fault

Type of trip

Electro-magnetic

Type of protection(electric leakage)

AC,A,G,S

No.of poles

2P(1P+N),4P(3P+N),N Pole on right

Rated currents (In)

16,25,32,40,63,80,100A

Rated sensitivity currentsI△n

10,30,100,300mA(10mA only forln=16-25A)

Residual current off-time underL△n

≤0.1s

Rated residual making and breaking capacity(L△m)

500A(ln=16-40A),10ln(In=63-100A)

Rated voltage(Ue)

1P+N:230/240V~,3P+N:400/415V~

Rated frequency

50/60Hz

Rated breaking capacity

6,000A,10,000A

SCPD fuse

6000 一 10000

Rated impulse withstandard voltage(1.5/50)Uimp

4,000V

Dielectric test voltage atInd.Freq.for 1min

2kV

Electrical life

2,000 Cycles

Mechanical life

4,000 Cycles

Contact position indicator

Yes

Ground fault indicator

Yes

Protection degree

IP20

Ambient temperature

-5℃to+40℃,Max.95%humidity

Terminal connection type

Cable/Pin-type busbar/Fork-type busbar

Max.terminal size for cable

35mm²

Max.tightening torque

2.5N.m

Installation

Mounting on 35mm DIN rail

Connection

From top and bottom
