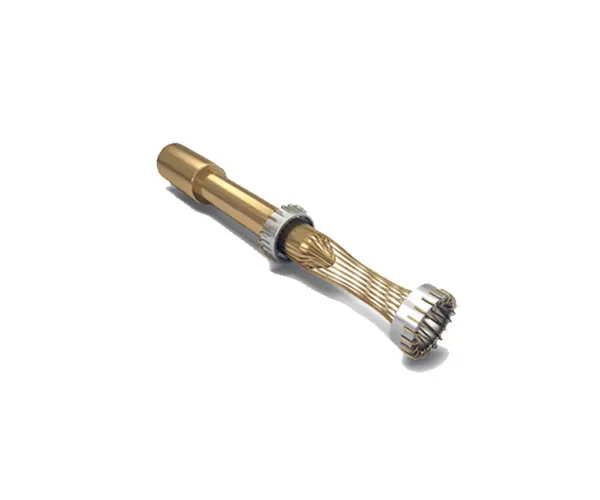

Hypertac Hyperboloid Contact Charging Terminal Pin

Category

Specification

Product Name

AUPINS Server Hashrate AI PCB Power Supply High Current Charging Terminal Pin

Connector Type

Male Pin / Female Pin

Mounting Method

PCB Soldering / Through-hole / Custom

Application Standard

GB/T 20234.2-2015

Mechanical Performance

Material

Brass, Copper

Contact material

BeCu C17200

Plating Material

Gold or silver 1.27 micro-inch minimum Au over 50~100 micro-inch nickel

Fixing Type

PCB fixed / screw locking / snap-fit optional

Insertion Force

45–80 N

Extraction Force

40–70 N

Tips: Customized according to requirements,To avoid arcing issue,The adaptor start to power supply after connector mated fully.

Environmental & Safety

Operating Temperature

-40°C to +125°C

Vibration Resistance

High – designed for automotive and industrial vibration conditions

Impact Resistance

Excellent – designed for repeated mechanical operation

Protection Rating

N/A (Depends on housing and integration)

Certifications

CE, TUV,GB/T compliant

Electrical Performance

Rated Voltage

Up to 250V AC (application-dependent)

Rated Current

60A / 120A / 1000A (varies by pin spec)

Contact Resistance

≤ 0.5 mΩ

Insulation Resistance

≥ 1000 MΩ

Withstanding Voltage

≥ 2000V AC (1 min)

Insertion & Extraction Life

≥ 10,000 cycles

Temperature Rise

≤ 50K at rated current

Mechanical life

≧1,000 times

Operating temperature

-40℃~125℃
