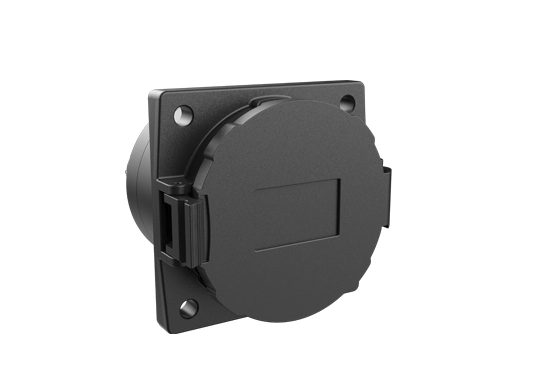

CCS1 DC EV Charging Socket
The AUPINS CCS1 DC EV charging socket complies with the specifications and requirements of SAE J1772-2012, It can applicable to all American standard electric vehicle charging guns.
-
- En
-
-
The AUPINS CCS1 DC EV charging socket complies with the specifications and requirements of SAE J1772-2012, It can applicable to all American standard electric vehicle charging guns.
Conform to the provisions and requirements of SAE J1772-2012, It can applicable to all American standard electric vehicle charging guns.
Use copper alloy, silver plated surface Beautiful appearance,prevention cap can be installed on the left side, the right side or the front of it, plug conveniently.
XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present.
Reliable material, flame retardant, pressure resistance, abrasion resistance, impact resistance and high oil resistance.
Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
Specifications of CCS1 DC Charging Socket | |
Mechanical Performance | |
Insertion and extraction force | <140N |
Mechanical life | ≥10000 times (no load) |
Electronic lock life | 60,000 times (rated voltage (12V), power-on time 600ms, normal temperature) |
Environment Performance | |
Working temperature | -30℃～50℃ |
Protection level | Cover closed IP54, insertion gun ≥ IP55; electronic lock IP65; tail outlet IP67 |
Electrical performance | |
Rated voltage | AC input: 250V.ac; DC input: ≤1000V.dc |
Rated current AC input | 16A, 32A; DC input: 125A, 150A |
Insulation resistance | >1000MΩ (500V.dc) |
Voltage resistance | 3000V.ac |
