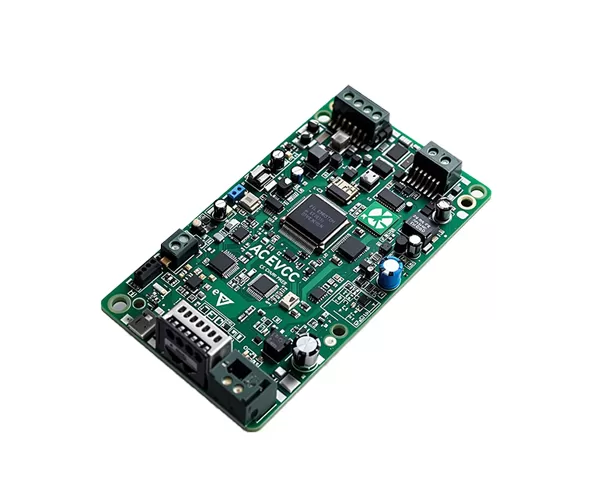

The AC Electric Vehicle Communication Controller (EVCC) module enables seamless AC charging communication by supporting both IEC 61851 and ISO 15118 standards, featuring IEC 61851-1 compliant AC charging control, ISO 15118-2 smart charging support, and Plug & Charge (PnC) readiness. Housed in a compact embedded design, it offers CAN bus and UART interfaces, along with OTA firmware update support.
According to the ISO15118-4 standard, verify whether the SECC implementation of ISO15118-2 is compliant (message format, timing, state machine functionality test)
Covers the entire process including PnC (plug-and-play charging), EIM authentication, charging parameter negotiation, V2G, fault handling, etc.
Verifies the compatibility with different brands/versions of EVCC to solve the "charger-car incompatibility" problem
Simulates scenarios such as communication interruption, timeout, illegal parameters, security attacks, etc., which are difficult to reproduce in real vehicles
It is a mandatory testing tool for cE certification, TUv, sGs, etc., for European standard AC chargers
AC-EVCC Module | |
Specifications | |
Protocol | IEC 61851-1, ISO 15118-2 |
Interface | CAN, UART, GPIO |
Certification | CE、RoHS |
Supply Voltage | 5V / 12V DC |
Operating Temp | -40°C~ +85°C |
Dimensions | 70×50×12mm |
IEC 61851-1 compliant AC charging control | |
ISO 15118-2 smart charging support | |
Plug & Charge (PnC) ready | |
Compact embedded module design | |
CAN bus & UART interface | |
OTA firmware update support | |
