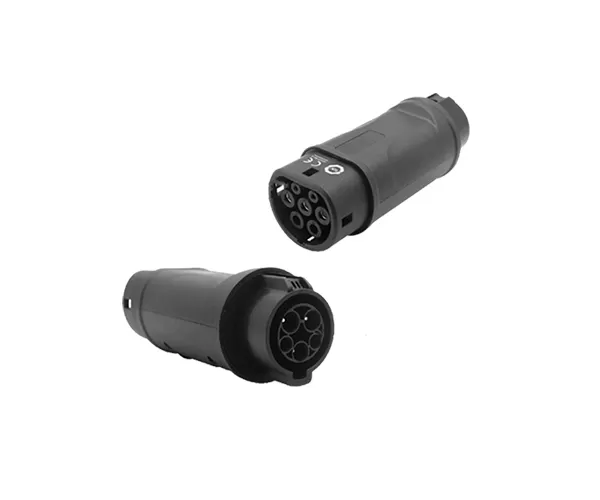

Type 1 to Type 2 EV charging adapter features a patented design, is lightweight and compact, and is easy to carry and store. It boasts an IP54 waterproof rating, effectively protecting against dust, and is plug-and-play with simple operation. It solves the problem of charging incompatibility.
Max output current 200A, save you much time
IP54 LEVEL waterproof design, you can safely use it outdoor
Very convenient to use, simply plug and charge.
Operating temperature range -20℃~45℃, suitable for most conditions.
Specifications of Type 1 to Type 2 Adapter | |
Mechanical Performance | |
Mechanical life | no-load plug in/out >10000 times |
Coupled insertion force | 45N<F<80N |
Environment Performance | |
Operating temperature | -30℃ to +50℃ |
Case material | thermoplastic,flame retardant grade UL94 V-0 |
Terminal | Copper alloy,silver plating |
Electrical performance | |
Rated current | 16A/32A |
Operation voltage | 110V-250VAC |
Insulation resistance | >1000MΩ(DC500V) |
Contact Resistance | 0.5mΩMax |
Terminal temperature rise | :<50K |
Withstand voltage | 2000V |
