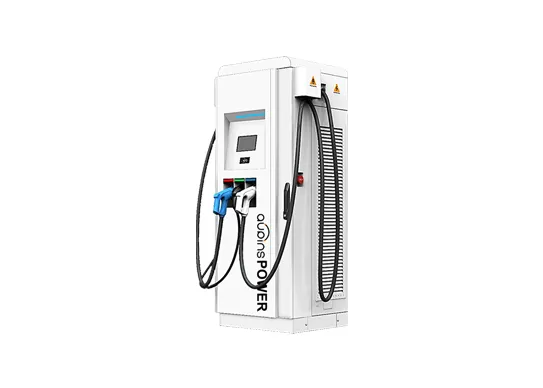

AUPINS EF160 Series DC Fast Charger is a high-power floor-standing electric vehicle charger designed for public and commercial charging networks. Its output power ranges from 60kW to 240kW and supports GB/T, CCS1, CCS2, and CHAdeMO standards. It supports dual charging cables and a maximum charging power of 240kW.
Offers flexible output configurations of 60kW, 120kW, 150kW, 180kW, and 240kW to meet different EV charging demands.
Supports GB/T, CCS1, CCS2, and CHAdeMO charging interfaces for wide vehicle compatibility across regions.
User-friendly Interface:Equipped with a 7-inch touchscreen for intuitive operation and real-time charging status display.
Integrated with overvoltage, undervoltage, short circuit, overtemperature, and lightning protection for secure and reliable performance.
Remote monitoring, remote diagnosis and remote upgrade.
AUPINS EF160 Series 60kW/90kW/150kW/180kw/240kw DC Fast Charger | ||
System | ||
Charging type | Mode 4, 60kW（2*30kW charging modules）/150kW (5*30kW charging modules)/180kW (6*30kW charging modules) / , 240kW (6*40kW charging modules) | |
Dimension (H x W x D) | 1900 x 725 x 700mm | |
Enclosure protection grade | IP54, IK10 | |
Cable routing | Bottom inlet, top outlet wiring | |
Net weight | 425kgs(180kW) / 460kgs ( 240kW) | |
Charging standard | IEC 61851-1, IEC 61851-23, CHAdeMO | |
Certificate | DEKRA certified CE, EN 61851-23:2014 + EN 61851-23:2014/AC:2016-06, IEC 61851-21-2:2018, EN IEC 61851-21-2: 2021 | |
Protection | Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection | |
Accessories | Cable management balancer reel | |
User interface | ||
User authentication | RFID, Nayax credit card (optional), Mobile APP | |
Display | 7 “ LCD touch screen | |
Support languages | English, Italian, Czech, Polish, Russian, Spanish, Romanian, Thai, German,French, Dutch (other languages upon request) | |
Network interface | Ethernet, GPRS and LTE (optional), support manually download the charging data from the local ev charger by USB disk. | |
Protocol | OCPP 1.6J (WS & WSS encryption), future upgradable to 2.0 | |
Environmental | ||
Working temperature | -30°C-+55°C, derating from 55°C to 75°C | |
Working humidity | 5%-95% non-condensation | |
Altitude | <2000m | |
Cooling | Forced air cooling | |
Model type | EF160CC60/EF160CC150 | EF160CC180/EF160CC240 |
Input | ||
Input voltage | 400Vac +/-10%, 50/60Hz, 3-phase + neutral + PE | |
Max. input current | 131A 60kW /179A 90kW /228A 120kW /265A 150kW /291A 180kW / 388A 240kW | |
Power factor | 0.99 at nominal output | |
Efficiency | 94% at nominal output | |
Output | ||
Max. DC output power (single charging) | CCS: 60kW /90kW/120kW/150kW/180kW/240kW CHAdeMO: 60kW | |
Max. DC output power (simultaneous charging) | 1.CCS2: 30kW CHAdeMO: 30kW Type2 22kW 2.CCS2: 60kW CHAdeMO: 30kW Type2 22kW 3.CCS2: 60kW CHAdeMO: 60kW Type2 22kW 4.CCS2: 90kW CHAdeMO: 60kW 5.CCS2: 90kW CCS2: 90kW 5. CCS2: 120kW CCS2: 120kW | |
DC output voltage range | CCS-2: 150 – 1000VDC | |
DC output current range | CCS-2: 0-250A or 0-400A ( optional) | |
Number of plugs | 2 | |
Outlet connectors | CCS Combo-2，CHAdeMO,Type 2 | |
