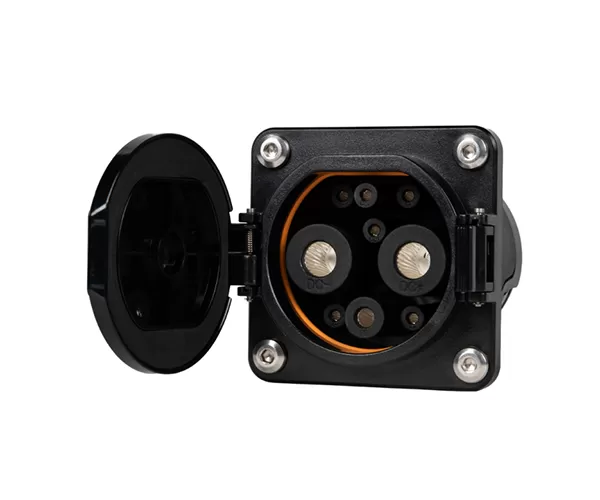

GB/T DC EV Charging Socket

AUPINS GB/T DC EV charging socket complies with the regulations and requirements of GB/T20234.2-2015. The socket has efficient charging and safety protection functions, and has built-in overheating protection and short-circuit power-off system to provide comprehensive protection for your charging process. Compact design, easy to install, suitable for home and commercial use.


DATASHEET

Datasheet of GB/T DC EV Charging Socket

Specifications of GB/T DC Charging Socket

Mechanical Performance

Insulation resistance

>1000MΩ (1000V.dc)

Insertion and extraction force

<100N

Mechanical life

≥10,000 times (no load)

Environment Performance

Working temperature

-30℃~50℃

Shell material

thermoplastics, flame retardant grade UL94-0

Contact - tube: copper alloy, silver plated

Electrical performance

Rated voltage

DC input 750V.dc

Rated current

80A, 125A, 200A,  250A

Insulation resistance

>2000MΩ(DC1000V)

Pins temperature rise

<50K

Withstand voltage

4500V (DC+/DC-/PE)

Contact impedance

0.5mΩMax
