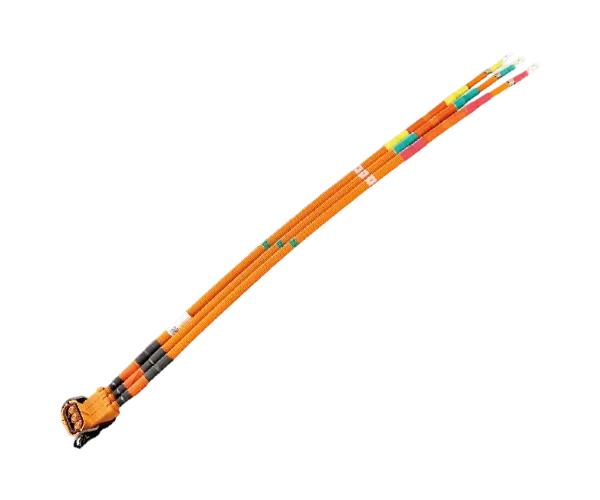

Three Phase Power Line

AUPINS Three phase power line are primarily used to connect batteries, motors, and other controllers in new energy vehicles, enabling the transmission of electrical energy and control signals. The EV wiring harness features high current capacity, high temperature resistance, low internal resistance, and flexible cable profile.


DATASHEET

Datasheet of Three Phase Power Line

Specifications of Three phase power line

Mechanical Performance

Terminals

8mm pins, silver-plated

Wire Diameter Range

25mm², 35mm², 50mm²

Mating/Extraction Life

≥10000 cycles

Mating/Extraction Force

F≥2300N

Environment Performance

Operating temperature

-40℃ ~ +125℃

Protection degree

IP67

Electric Shock Protection Rating: IP2XB

IP2XB

Corrosion Resistance

48H Salt Spray Test

Waterproof Sealing

IP67

Flame Retardant Rating

UL94 V-0

Electrical performance

Rated voltage

800V DC

Rated current

125A~200A

Insulation Withstand Voltage

2500V AC

Withstand voltage

2000V AC

Wire harness specification

1.5mm²/2.5mm²

Cable outer diameter

12.5±0.5/15.5±0.5
