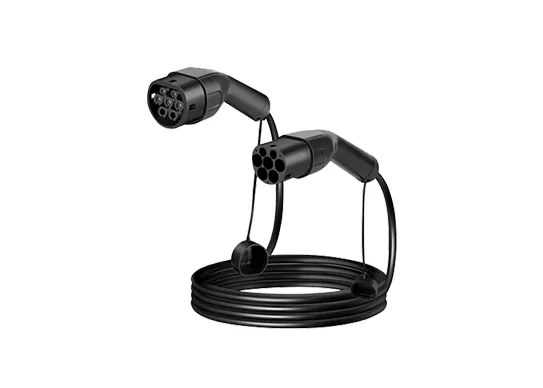

AUPINS S Series Type 2 IEC 62196 Charging Cable

AUPINS S Series Type 2 IEC 62196 Charging Cable is a robust AC EV charging solution designed for Global Market. It is certified with CE, ROHS, UKCA in accordance with IEC 62196-2 standard, supporting 16A/32A current and up to 3.5kW/7kW/11kW/ 22kW power output, it offers reliable charging for residential, public, and commercial stations across Europe and other Type 2-standard regions. Built with flame-retardant materials and a weather-resistant TPU cable, it ensures safe, efficient, and durable performance in all conditions.

DATASHEET

Datasheet of AUPINS S Series Type 2 IEC 62196 Charging Cable

AUPINS S Series Type2 IEC 62196 Charging Cable

Specification

S (Speed)Series

Item

Details

Standard

IEC 62196-2 (Type 2 - Type 2)(Type 2-open end)

Rated Current

16A / 32A

Rated Voltage

250V (Single Phase) / 480V (Three Phase)

Certificate

TUV, CE, UKCA,CB

Cable Structure

16A Single Phase: 3×2.5mm² + 2×0.5mm²

32A Single Phase: 3×6mm² + 2×0.5mm²

16A Three Phase: 5×2.5mm² + 2×0.5mm²

32A Three Phase: 5×6mm² + 2×0.5mm²

Cable Insulation

XLPO (Cross-linked Polyolefin)

Sheath Material

TPU (Thermoplastic Polyurethane)

Connector Housing

PC + PBT Alloy

Contact Material

Copper Alloy, Silver-Plated

Sealing Material

Silicone Rubber

Cable Form

Straight, Spiral Type

Protection Level

IP55, IK08

Customization Options

Cable Length: Yes

Cable Color: Yes

Plug Color: Yes

Logo Printing: Yes

Mechanical Life

10,000 Mating Cycles (No-load Plug)

Insertion Force

<100N

Contact Resistance

≤0.5 mΩ

Insulation Resistance

>1000MΩ (DC 500V)

Withstand Voltage

2500V AC

Temperature Rise of Pins

<50K

Operating Temperature

-30℃ to +50℃

Impact Resistance

1m Drop Test + 2T Vehicle Overrun

Flame Retardant Grade

UL94 V-0
