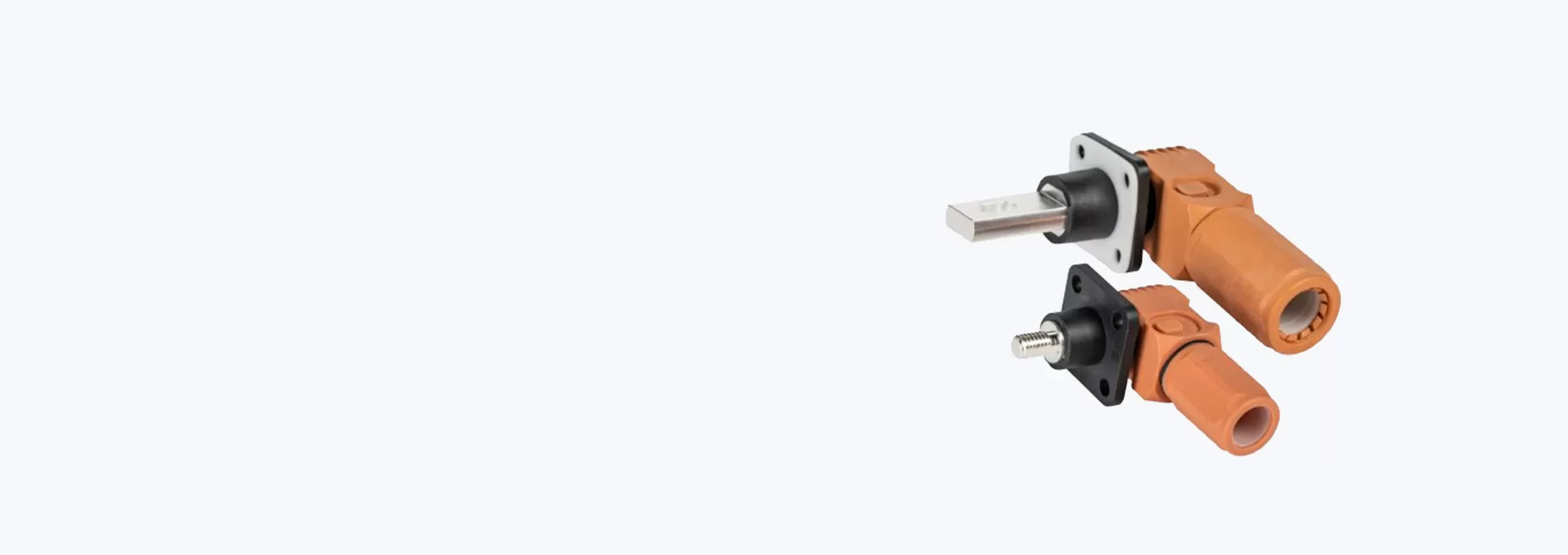

Energy Storage Connector

Energy Storage Connector

The connector for energy storage module equipment developed by AP is able to realize the positive and negative connections and 360° rotating connection. And the products comply with TUV/UL, and RoHS certification and the quality is stable and reliable. This energy storage connector can bring you a better sense of use.


Energy Storage Connector Types

Energy storage connectors are essential for linking energy storage systems to power grids or devices. Common types include

energy storage socket connectors, busbars, and plug connectors. They ensure efficient energy transfer and enable seamless integration of energy storage solutions into various applications.

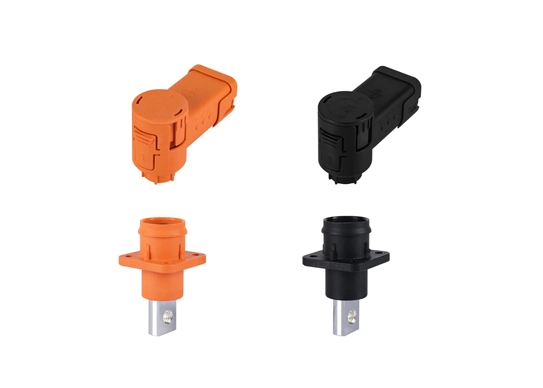

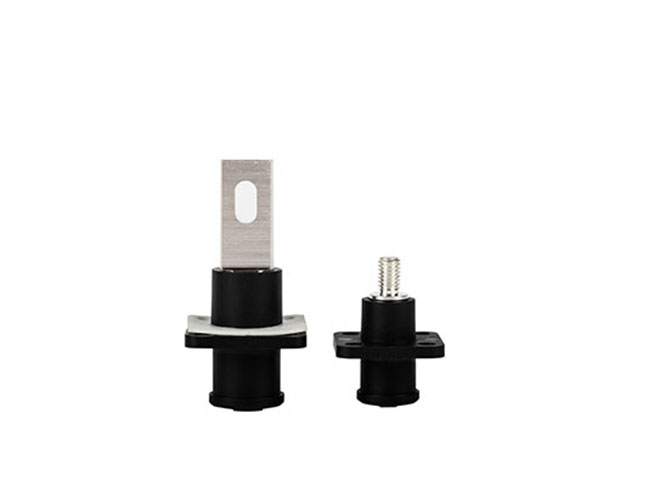

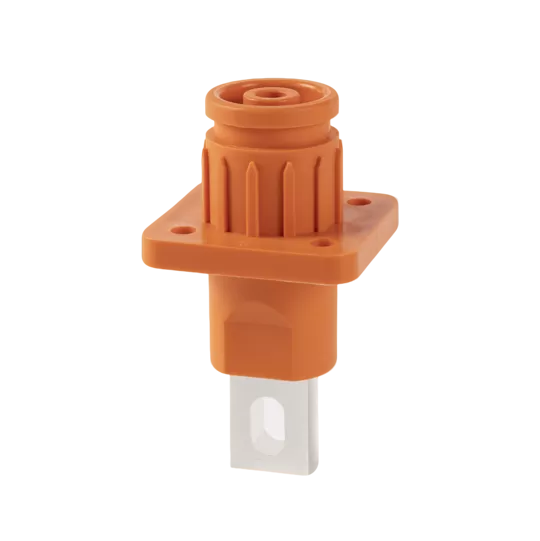

Energy Storage Socket Connector

The production process of AP energy storage connector socket is precise, and the appropriate socket can be selected according to the required current, which is designed in accordance with the UL4128 standard.
More Connectors

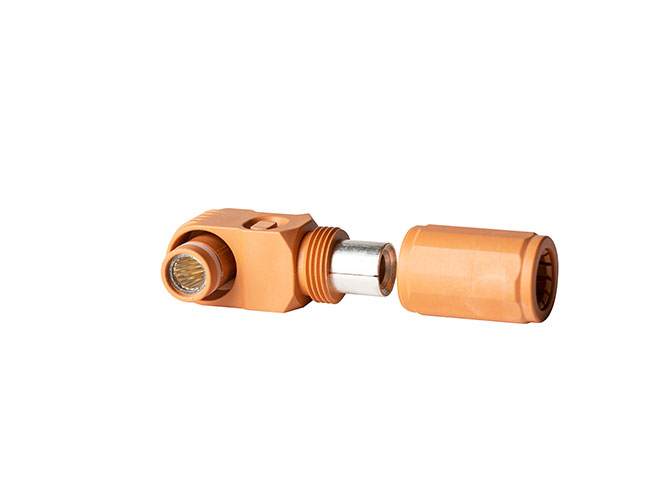

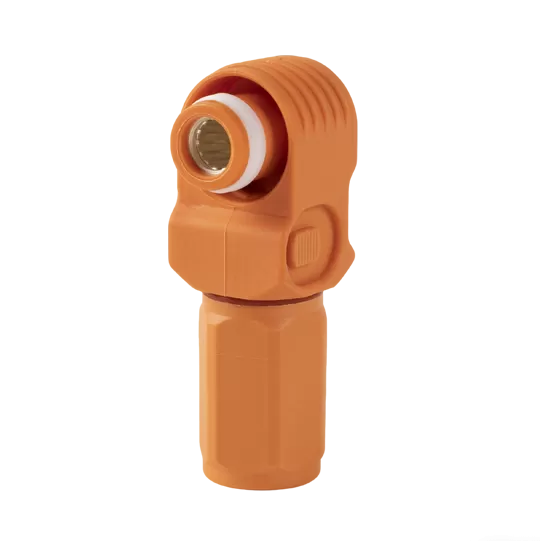

Energy Storage Plug Connector

The plug is able to realize 360° rotation and blind-mating. It is not easy to break with a high safety function during working.
More Connectors

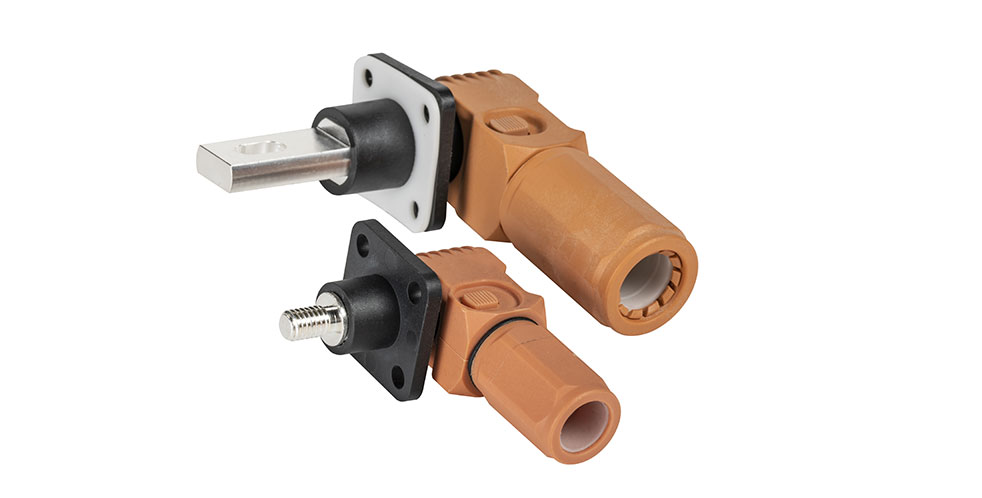

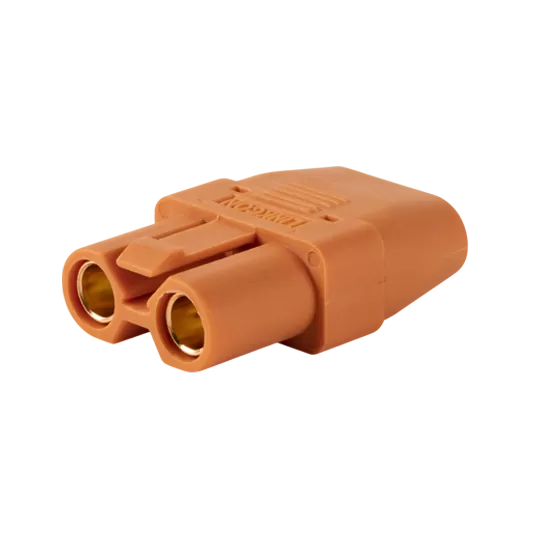

SS1 Series connector for Energy Storage Connector

AP SS1 series energy storage connector is used for positive and negative high voltage connection between battery packs of chemical energy storage system. AP has leading crimping technology and equipme...
More Connectors

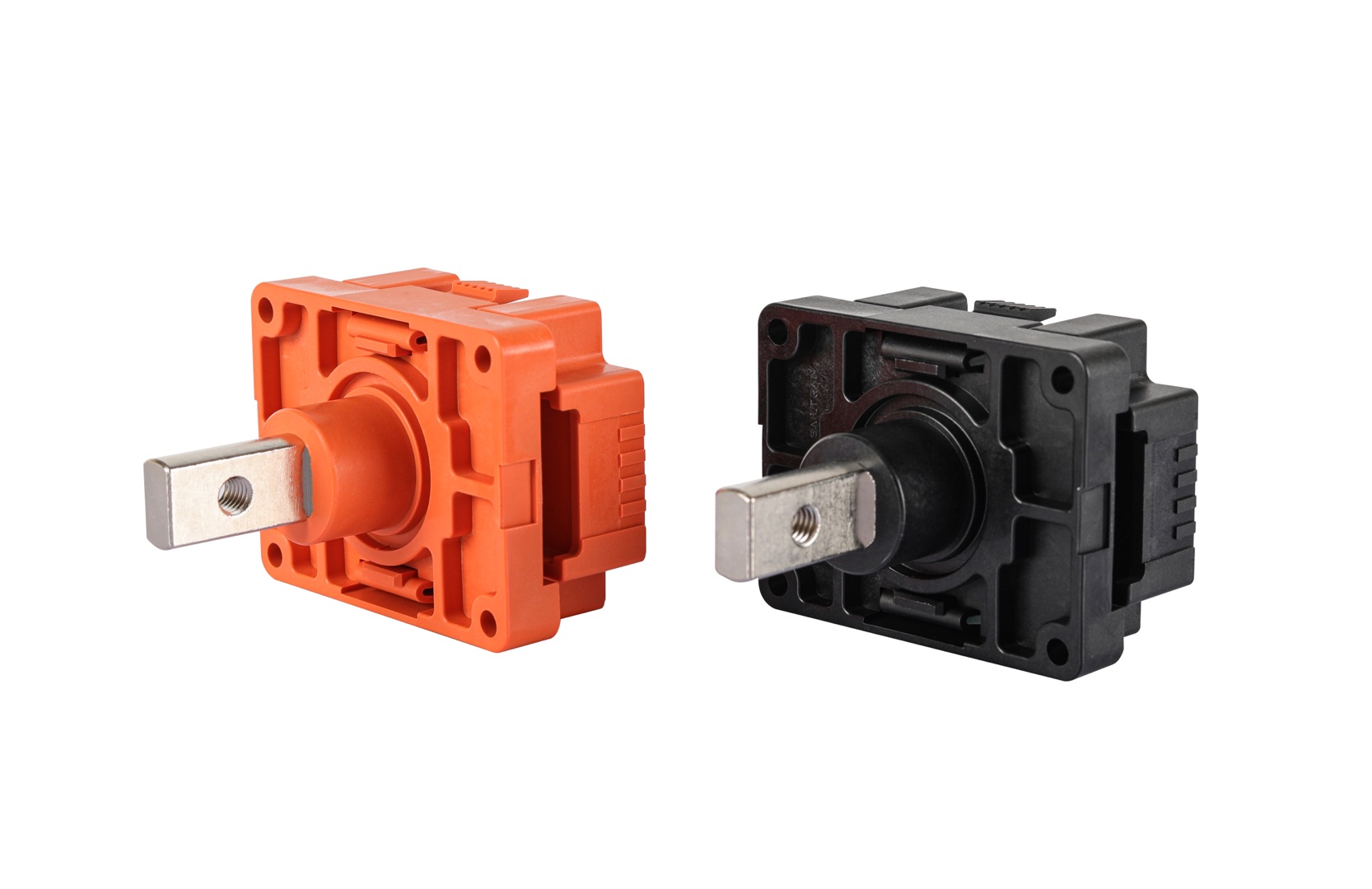

SS2 Series Connector for Energy Storage Connector

SS2 series copper bar energy storage connector is able to reach quick installation and quick replacement. This copper bar connector can be provided both waterproof and non-waterproof for customers to ...
More Connectors

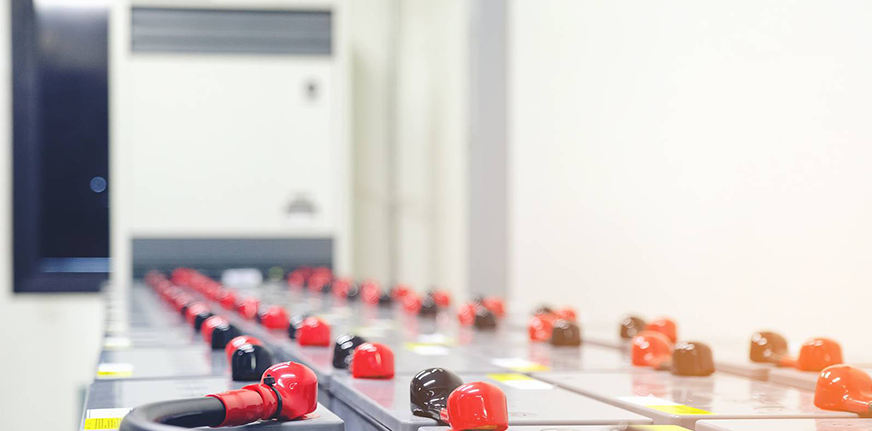

Energy Storage Connector Working Principle/Display

Energy Storage Connector Working Principle/Display

Energy storage connectors have usually two usage:

  1. Mounts directly on the instrument panel or printed circuit board

  2. Connect an RF coaxial cable for electrical signal transmission


Several Structures in Energy Storage Connector Cables and Access Methods

Several Structures in Energy Storage Connector Cables and Access Methods
  1. Both the inner and outer conductors are crimped

  2. he inner conductor is crimped and the outer conductor is welded

  3. The inner conductor is welded and the outer conductor is crimped

  4. The inner conductor is welded and the outer conductor is threaded

  5. The inner conductor adopts crimping, the outer conductor adopts thread compression, etc

Aupins Energy Storage Connector Advantages

Socket anti-electric shock design & Anti-mis-insertion connection:Effectively prevent customers from being electrocuted during assembly and ensure worker safety

Socket anti-electric shock design & Anti-mis-insertion connection: Effectively prevent customers from being electrocuted during assembly and ensure worker safety

High security: With IP67 waterproof level and it is convenient for customers to use in harsh environments

High security: With IP67 waterproof level and it is convenient for customers to use in harsh environments

360 degree rotation: Plugs and sockets are able to rotated 360 degrees to meet the different wiring needs of customers

360 degree rotation: Plugs and sockets are able to rotated 360 degrees to meet the different wiring needs of customers

Flexible & fast installation: The newest installation technology applied to AP energy storage connector.

Flexible & fast installation: The newest installation technology applied to AP energy storage connector.

AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
