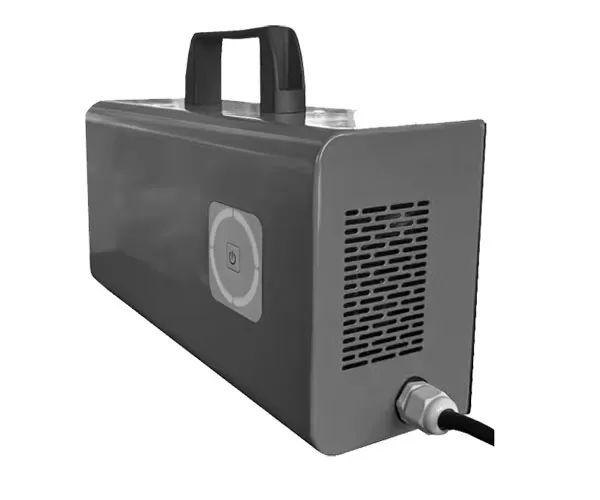

3.5/7KW DC Movable Charger

Mechanical Performance

Protection level

3.5kw-IP67,7kw-IP55

Impact Protection

IK8

Surge

Severe level 3

Voltage drop

Severe level 3

Dimension

340*160*90mm

weight

6Kg( Includes input and output cables)

Standard

IEC61851-1

Charging protocol

CCS2 DIN 70121 /ISO15118/IEC61851-23

Environment Performance

Working temperature

-30℃-+50℃

Operating humidity range

40-80RH%(When the outer surface temperature is below the dew point,Condensation can also work normally)

Working Altitude

<2000m

Atmospheric pressure

70-106kpa

Electrical performance

Alternating current voltage

230V(± 10%)

Input connection

L 1+N+PE RH%

Maximum power

3.5KW/7KW

Direct current voltage

500V

Output voltage range

200-420V/90-280V

Maximum instantaneous output power

9A（Suitable for 3.5kW models）

Maximum output power of direct current

2.5-3.3KW

efficiency

95%
