IEDGA16

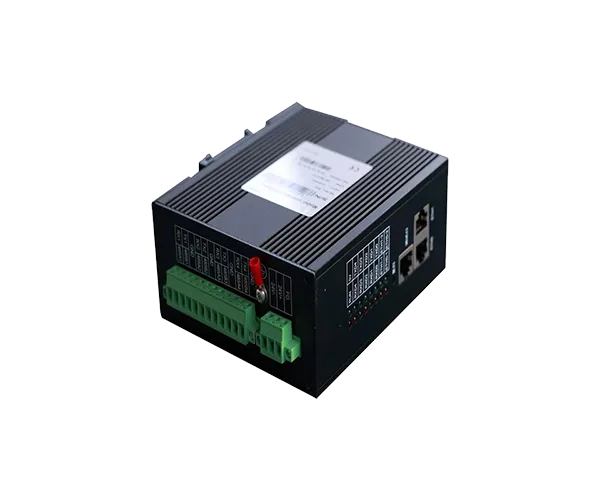

The IEDGA16 is a fanless embedded communication management unit. It uses an industrial-grade ARM200MHz CPU and supports 8 isolated serial communication ports and 2 Fast Ethernet ports. Its DIN rail mounting design is suitable for field applications. With isolated I/O, it supports the Embedded Linux operating system, enabling automated data acquisition and communication protocol conversion from serial devices to Ethernet networks. The CPU is an Atom N270 1.6GHz, with 4 Gigabit Ethernet ports and up to 16 serial communication ports. Embedded and Linux-based, it offers customizable image files and a rich software environment, making it ideal for industrial field solutions.

It supports a variety of commonly used power protocols, including IEC61850, CDT, DNP3.0, IEC870-5-101/102/103/104, SC1801, Modbus/Jbus (RTU/ASCII/TCP), Ministry-issued multi-function electricity meter protocol, CANBus, and LonWorks.


DATASHEET

Datasheet of IEDGA16

UT -5204 Isolated RS -232

Interface standards and ports

Interface Standard

RS -232C, RS -485 (compliant with EIA/TIA)

Input port

1 RS --232 port + 1 RS- -485 port (sharing the same input terminal)

Output port

4 fully isolated RS --485 channels

Isolation methods

Opto-isolation

Isolation voltage

2500 Vrms

Communication parameters

Communication rate

300 bps~115200bps, adaptive (no manual setting required)

Maximum transmission distance:

5000 meters (@9600bps, using twisted pair or shielded cable)

Work mode

Half-duplex, automatic flow control, no need for RTS hardware flow control signals

Power supply and power consumption

Power input

DC 9V ~ 30V

Power consumption

≤ 150 mA (approximately 1.35W at 9V)

Protection performance

RS 232 port

±15 kV ESD protection

RS 485 port

Each line 600 W surge protection (TVS transient suppression)

Physical Specifications

Installation method

DIN rail (standard 35mm rail)

Overall dimensions

120x80x25mm (width x depth x height)

Wiring method

Green pluggable terminal blocks (for quick and easy field wiring)

Environmental parameters

Operating temperature

-40°C to +85°C (Industrial wide temperature range)

Storage temperature

Same operating temperature range (standard)

relative humidity

Recommended concentration: 5%~95% (non-condensing)
