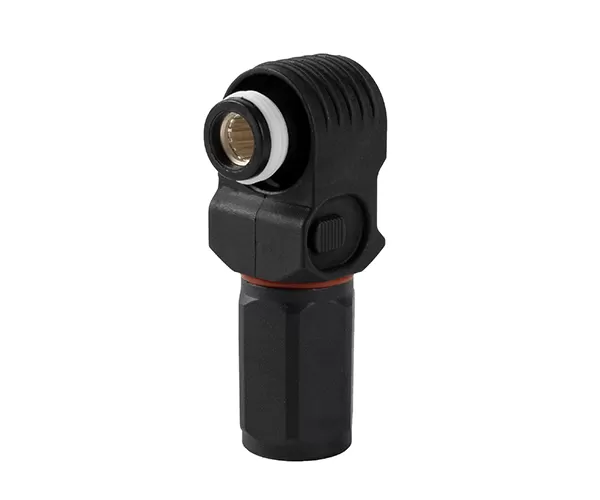

120A-300A ESS Socket

AUPINS 120A-300A energy storage connectors offer a fast, safe, and cost-effective solution for energy storage module systems, featuring high current carrying capacity, low resistance design, long lifespan, reliability, and safety protection. Customized design and manufacturing are available to meet the needs of various application scenarios during the design and manufacturing of energy storage systems.


DATASHEET

Datasheet of 120A-300A ESS Socket

Specifications of 120A-300A ESS Socket


Mechanical Performance

Plastic shell

PA66+G/F

Sealing ring

Silicon rubber

Contact terminal

T2 Copper Alloy, Silver-plated

Mechanical life

500 times

Environment Performance

Operating temperature

-40℃~125℃

Protection degree

IP67

Flame-retardant grades

UL94-V0

Electrical performance

Rated current

5.7mm (120A), 8.0mm (200A), 10.3mm (300A)

Contact resistance

0.2mΩ Max

Insulation resistance

≥5000MΩ

Working voltage

1000V/1500V AC/DC

Withstand voltage

5200V/6800V AC/DC
