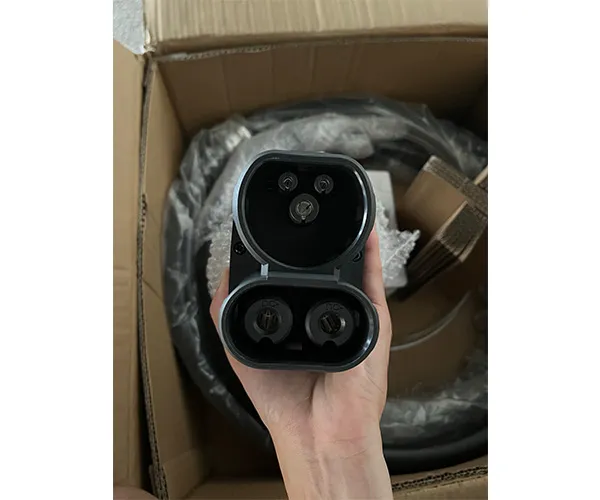

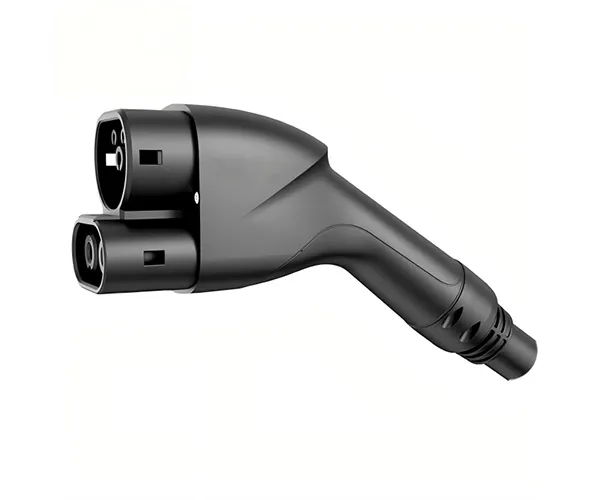

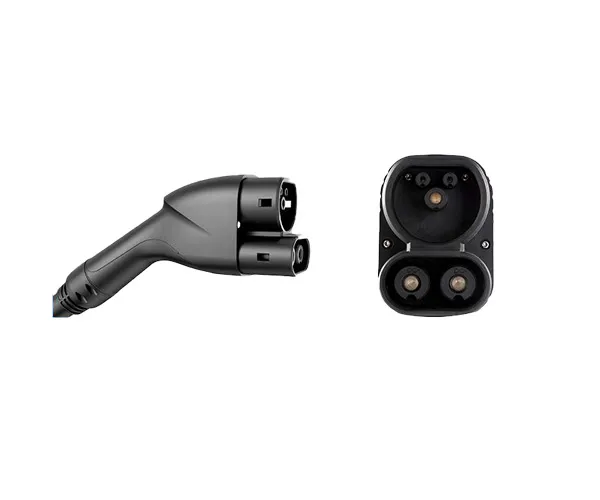

500A Liquid Cooled CCS2 Charging Connector

Name: 500A Liquid Cooled CCS2 Charging Connector
Brand: AUPINS TECHNOLOGY CO., LTD.

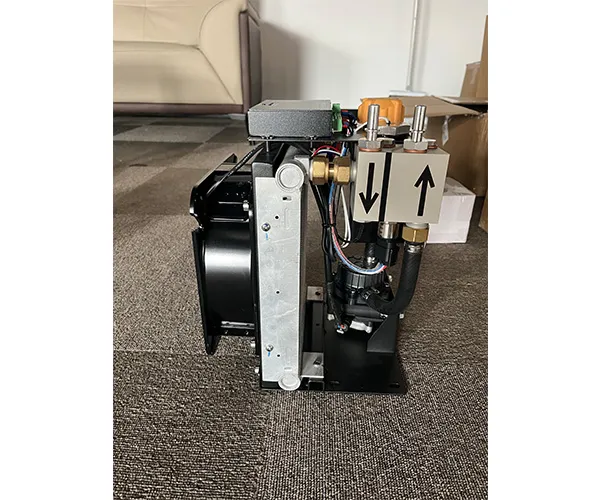

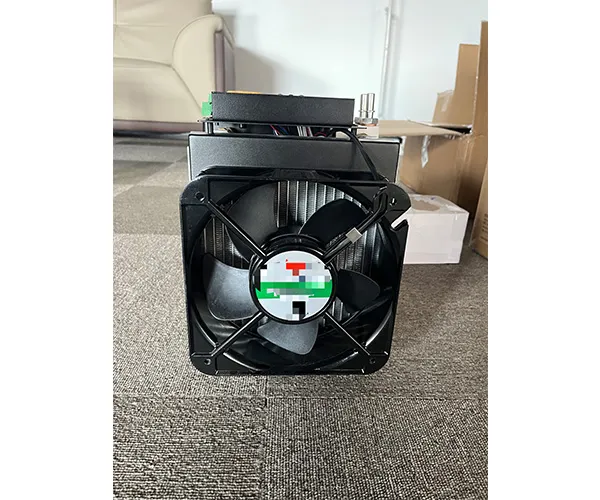

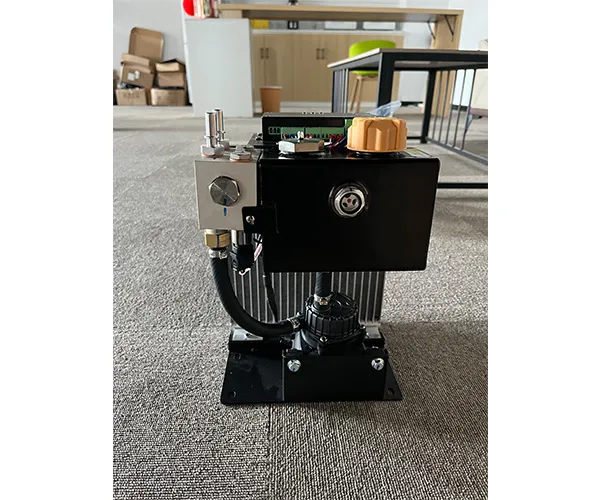

The 500A high-power liquid cooled CCS2 charging system is a dedicated circulation channel set up between the cable and the CCS2 charging connector. Cooling medium is added to the channel, and then the liquid is circulated through the power pump for cooling and heat dissipation.
As a provider of high-power liquid cooling charging system solutions, Senku collaborates with automotive manufacturers to develop customized products that can quickly respond to customer needs.

 Get A Quote  Document

FEATURES

Features of 500A Liquid Cooled CCS2 Charging Connector

500A continuous high current

This product has a rated current of 500A and a voltage specification of 1000V. It can achieve a charging system's power supply capacity of 500kW to 600kW.

Efficient liquid cooling system

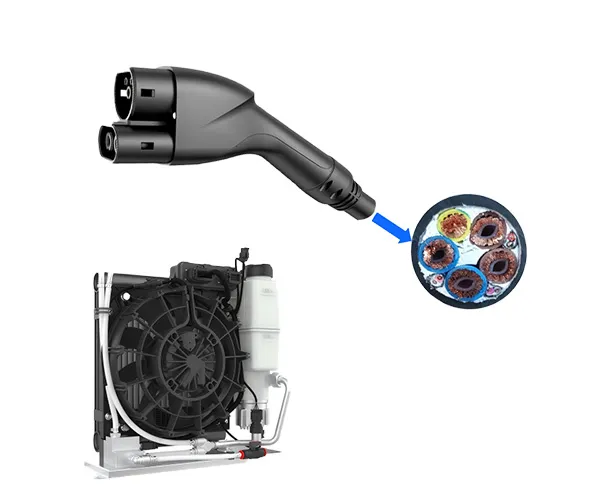

The product uses coolant to circulate inside the cables and connectors, effectively removing the Joule heat generated by the high current, allowing the terminals to maintain controllable working temperatures.

Humanized design

The gun cable is lighter and more flexible, and the operation is more convenient.

Comprehensive international certifications, global market access

The product has passed international authoritative certifications such as CE, CB, and TÜV, complies with the IEC 62196-3 international standard, is compatible with the CCS2 European standard charging system, and can meet the DC fast charging needs of electric vehicles in global markets such as Europe, Asia, and Australia.

DATASHEET

Datasheet of 500A Liquid Cooled CCS2 Charging Connector

500A Liquid Cooled CCS2 Charging Connector
Technical parameters
Rated current	500A
Operate voltage	1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Withstand Voltage	3000V
Contact Resistance	0.5 megohm
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 55
Standard	IEC 62196-1 IEC 62196-3
Certifications	TUV CE
