PD Acquisition Unit

Name: PD Acquisition Unit
Brand: AUPINS TECHNOLOGY CO., LTD.

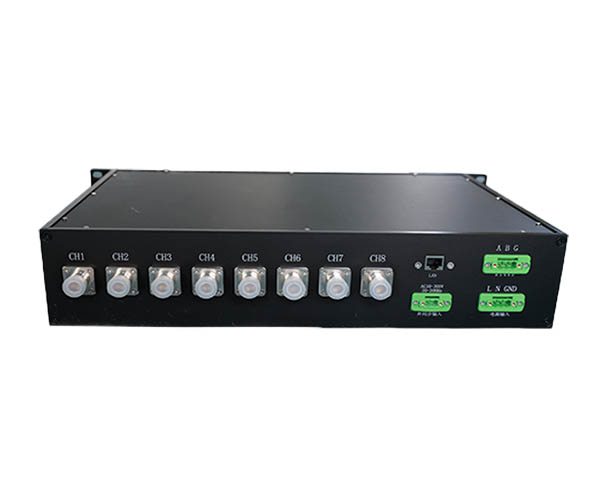

The PD Acquisition Unit is a device specifically designed for acquiring partial discharge signals. It converts input partial discharge signals into digital signals and integrates with a host computer to achieve real-time data transmission and processing. This product is suitable for power systems, electrical equipment, and other fields, featuring high precision, high stability, and good compatibility, providing reliable technical support for partial discharge monitoring. The integration with the host computer enables real-time data transmission and sharing.

 Get A Quote

FEATURES

Features of PD Acquisition Unit

Real-time data interaction

By linking with the host computer, the system enables real-time transmission and sharing of collected data, ensuring information synchronization without delay.

Local monitoring and data analysis

Users can view partial discharge data in real time through host computer software and perform corresponding processing and analysis to facilitate timely understanding of equipment status.

The intelligent diagnostic and early warning

host computer can automatically perform fault diagnosis and early warning operations based on the collected data, effectively improving equipment operating efficiency and safety, and assisting in operation and maintenance decisions.

Application areas

Power systems, electrical equipment, etc.

DATASHEET

Datasheet of PD Acquisition Unit

PD Acquisition Unit
Technical parameters
Acquisition Channel	8 channels
Operating temperature range	-40~+85℃
Detection band	300MHz~3000MHz
Sensor effective height	≥12mm
Impedance matching	50Ω
RF signal gain	≥20dB
Overall sensitivity	≤2V/m
Overall dynamic range	≥40dB
Communication methods	RS-485 / Ethernet
