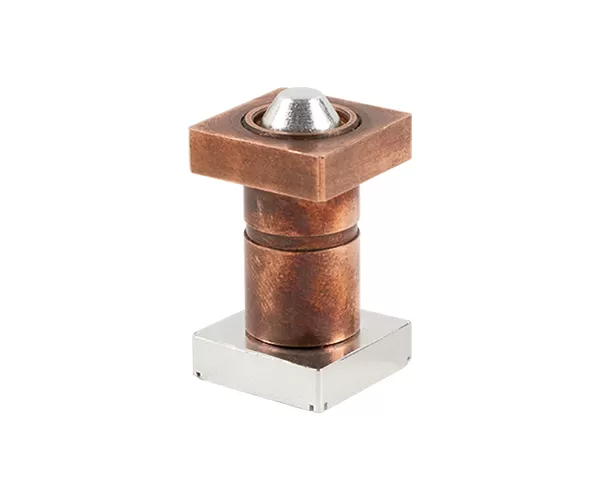

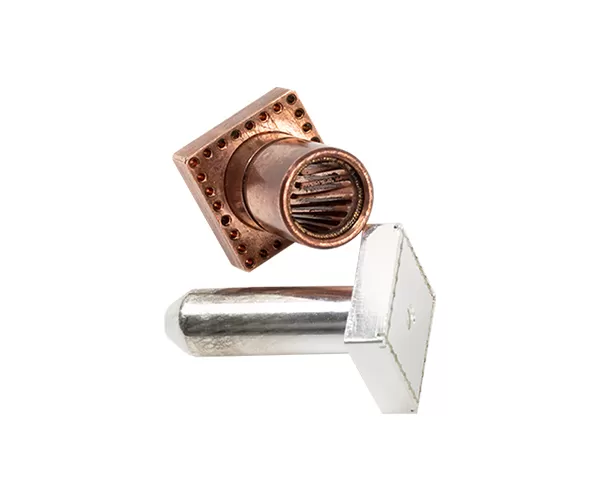

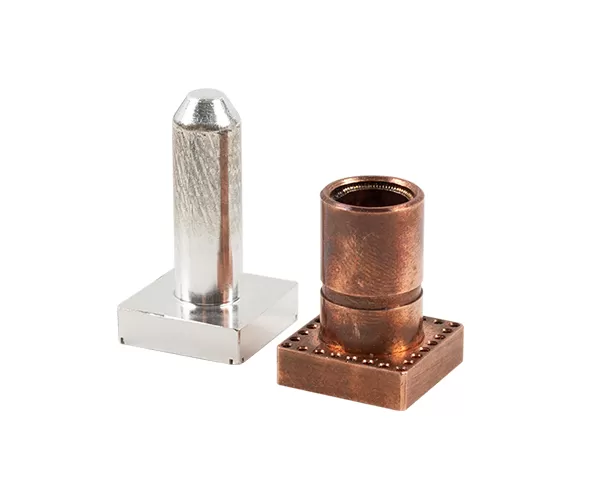

PCB Power Supply High Current Contact Charging Terminal Pin

Name: PCB Power Supply High Current Contact Charging Terminal Pin
Brand: AUPINS TECHNOLOGY CO., LTD.

The AUPINS AI PCB Power High Current Charging Terminal Pin is a high-precision metal electrical connector designed specifically for power connection applications. It is widely used in electrical connections and PCB power supplies within the information technology industry. This durable pin offers excellent conductivity, ensuring stable current transfer between the power supply and printed circuit board assembly control modules. Power ranges from 120A, 300A, and 1000A are available.

 Get A Quote  Document

FEATURES

Features of PCB Power Supply High Current Contact Charging Terminal Pin

High Durability

Superior vibration resistance and durability, rated mechanical life ≥ 10,000 mating cycles, excellent and stable insertion and extraction force

High Conductivity Materials

Silver-plated, gold-plated, or nickel-plated copper alloys, low contact resistance, high current carrying capacity, and low temperature rise

Flame-Retardant Insulation

H62 brass + insulating sleeve, ensuring safe high-current operation

High Heat Resistance

Maintains performance under high heat and high load conditions

Flexible Compatibility

Supports various crimp sizes, low contact resistance, high current carrying capacity, and low temperature rise

Modular Design

Easy to assemble/disassemble, convenient for replacement or maintenance; safety locking design ensures stable mechanical and electrical connections

DATASHEET

Datasheet of PCB Power Supply High Current Contact Charging Terminal Pin

Specifications of PCB Power Supply High Current Contact
Category	Specification
Product Name	AUPINS Server Hashrate AI PCB Power Supply High Current Charging Terminal Pin
Connector Type	Male Pin / Female Pin
Mounting Method	PCB Soldering / Through-hole / Custom
Application Standard	GB/T 20234.2-2015
Mechanical Performance
Material	Brass, Copper
Contact material	Beryllium bronze
Plating Material	Gold or silver
Mechanical life	≧10,000 times
Contact Material	Copper alloy, silver-plated
Plating	Silver Plated
Fixing Type	PCB fixed / screw locking / snap-fit optional
Insertion Force	45–80 N
Extraction Force	40–70 N
Tips: Customized according to requirements
Environment Performance
Operating temperature	-40℃~125℃
Vibration Resistance	High – designed for automotive and industrial vibration conditions
Impact Resistance	Excellent – designed for repeated mechanical operation
Protection Rating	N/A (Depends on housing and integration)
Certifications	CE, TUV,GB/T compliant
Electrical performance
Rated Voltage	Up to 250V AC (application-dependent)
Rated Current	60A / 120A / 1000A (varies by pin spec)
Contact Resistance	≤ 0.5 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstanding Voltage	≥ 2000V AC (1 min)
Insertion & Extraction Life	≥ 10,000 cycles
Temperature Rise	≤ 50K at rated current

AUPINS: One-Stop Electric Vehicle Charging Solutions Manufacturer



86-025-52353393

+86-18512525557



felixxu@aupins.com



1111, 11th Floor, Shanchuang Cultural Business Building, Yuhuatai District, Nanjing City, Jiangsu Province, China

AUPINS: One-Stop Electric Vehicle Charging Solutions Manufacturer

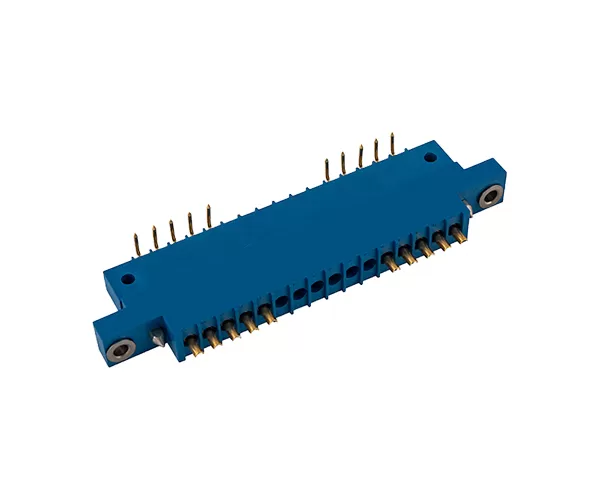

16 Core PCB Connectors Explore More
