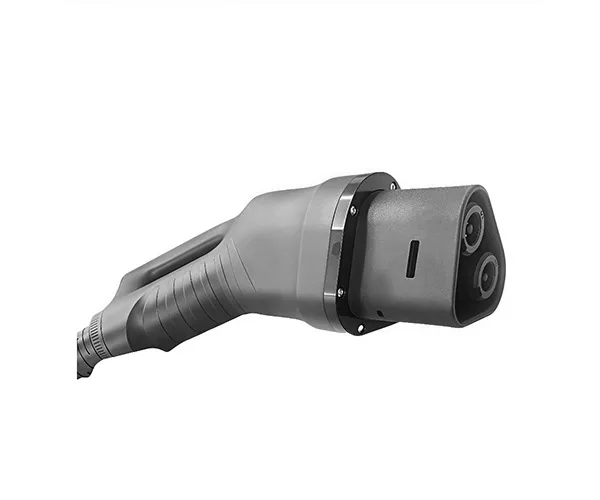

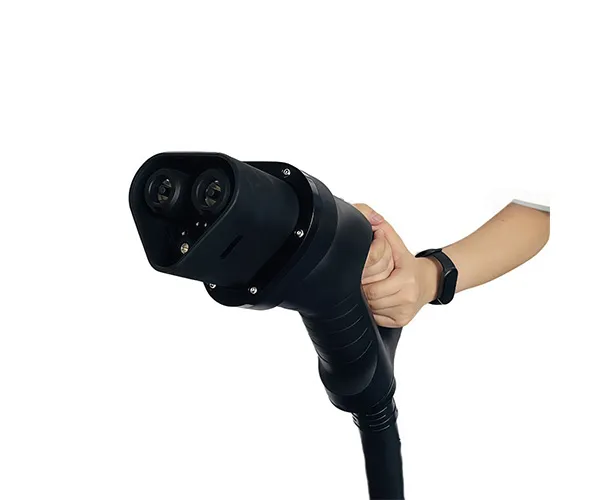

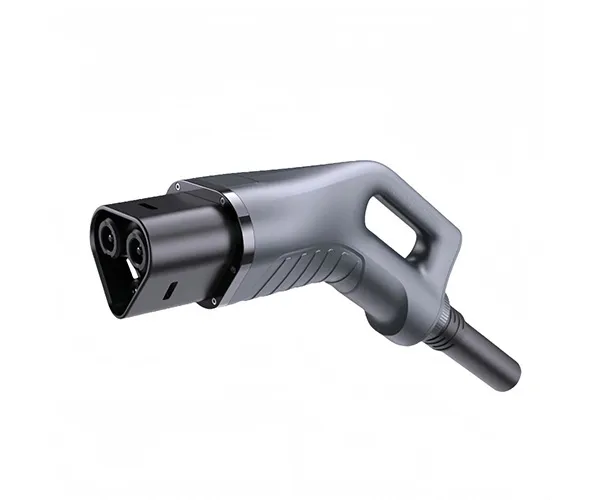

Megawatt Charging System Connector

Covering a wide current range of 350A to 4000A, with a 1500VDC high-voltage platform, single-gun unlocking megawatt-level power significantly reduces charging time for heavy vehicles and lowers the total cost of ownership (TCO) of a fleet.

The 350A features a simplified air-cooled design; the 1500A and above adopt a liquid-cooled heat dissipation system to cool the plug and cable simultaneously, ensuring controllable temperature rise and stable operation over a long period of time under continuous high current.

Designed in accordance with CharIN MCS standards and IEC 63379 specifications, the terminals and signal pins (DC+/DC-/PE, ID/CE/PHY) are clearly defined, facilitating rapid integration of the entire pile control, metering, and communication modules.

It supports customization of cable length, cooling interface, appearance and terminal specifications, and provides electrical and mechanical adaptation according to the customer's complete pile platform. The 4000A ruggedized version is especially suitable for small-batch, customer-specific applications.
