AUPINS A5 Series Portable EV Charger

Select the Right A5 Portable EV Charger Configuration

The appropriate A5 configuration depends on the local power supply, wall socket, vehicle charging inlet and required charging current.

Available current and power depend on the input plug, supply voltage, cable specification and target-market requirements.

Please provide the following information when requesting a quotation:

• Target country

• Available supply voltage

• Required input plug

• Vehicle connector type

• Required charging current

• Estimated order quantity

• Applicable certification requirements

Available Vehicle Connector Options

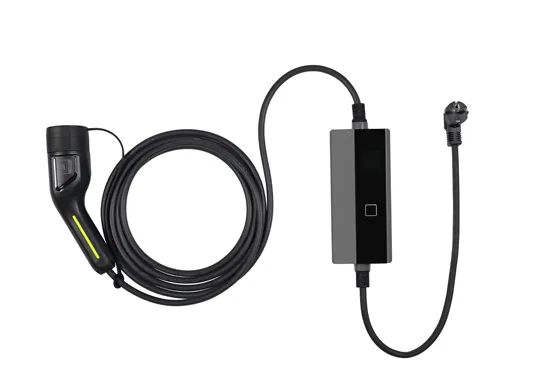

Type 2 Portable EV Charger

The Type 2 version is designed for electric vehicles using an IEC 62196-2 AC charging inlet. It is suitable for many European and other IEC-based charging markets. The input plug and rated current should be selected according to the local socket and electrical installation.

Type 1 Portable EV Charger

The Type 1 version is available for electric vehicles using the SAE J1772 AC charging inlet. Input voltage, plug type, current rating and applicable certification must be confirmed for the target market.

GB/T Portable EV Charger

The GB/T version is available for vehicles and charging applications using the applicable GB/T AC charging interface.

Other Connector Requirements

Additional vehicle connector configurations may be evaluated according to the project. Availability, specifications and certification must be confirmed before quotation.

Input Plug Options for Different Markets

AUPINS can discuss different input plug configurations according to the destination country and required charging current.

Available or configurable options may include:

• Schuko plug

• CEE 7/4 plug

• NEMA plug

• Other market-specific AC plugs

The input plug must match the local socket rating, grounding system, rated current and applicable electrical requirements.

A portable EV charger should only be connected to a properly installed and grounded outlet with sufficient current capacity. Installation and socket suitability should be checked by a qualified electrician.

Built for Portable and Outdoor Charging

IP67 Ingress Protection

The portable control unit is designed with IP67 protection under specified test conditions, helping protect it against dust and temporary water exposure.

Connectors, plugs and open electrical interfaces must be used and stored according to the product instructions. Protection ratings may differ when the product is connected, disconnected or improperly installed.

IK10 Impact Protection

The charger housing is designed to provide IK10 impact resistance under specified test conditions.

Flame-Retardant Housing

The enclosure material is designed to meet UL94 V-0 flame-retardant performance requirements.

Wide Operating Temperature Range

The A5 is designed for operation in environments ranging from -30°C to +50°C, subject to product configuration and installation conditions.

Durable Charging Cable

The charging cable is designed for repeated handling and portable charging applications.

Cable length, conductor size, outer-jacket material and plug configuration should be confirmed according to the selected current rating.

OEM and Private-Label Portable EV Chargers

AUPINS supports OEM and ODM cooperation for EV charger distributors, automotive companies and charging equipment brands.

Available customization may include:

Vehicle Connector

Select a Type 1, Type 2, GB/T or other confirmed connector configuration.

Input Plug

Configure the charger according to the wall socket and electrical requirements of the target market.

Charging Power and Current

Select an appropriate 2.3kW, 3.5kW or 7kW model with compatible current settings.

Cable Length

Discuss vehicle-side and input-side cable lengths according to the intended application.

Product Appearance

Housing color, cable color and selected appearance details can be evaluated for qualified projects.

Logo and Product Label

Customer logo, rating label and product identification can be customized according to order requirements.

Display and Interface

Display content and user-interface customization may be discussed subject to technical feasibility and project quantity.

Packaging and Documentation

Available options may include:

• Customized carton

• Product labels

• User manual

• Carrying case

• Barcode or serial-number label

• Market-specific product documentation

Customization availability depends on technical feasibility, certification requirements and estimated quantity.

From Product Selection to Delivery

1. Submit Your Market Requirements

Tell us the destination country, input plug, vehicle connector, power rating and estimated order quantity.

2. Confirm the Product Configuration

Our team reviews the voltage, current, plug, cable, protection and certification requirements.

3. Receive a Technical and Commercial Proposal

A recommended configuration and quotation are prepared according to the confirmed requirements.

4. Evaluate a Sample

Sample availability can be discussed before mass production.

5. Confirm OEM Details

Finalize the logo, labels, packaging, user manual and other customization requirements.

6. Production and Inspection

Production is arranged according to the confirmed product specification.

7. Delivery and Ongoing Support

AUPINS supports delivery coordination and technical communication for continued cooperation.

FAQ

What power options are available for the A5 portable EV charger?

The A5 is available in 2.3kW, 3.5kW and 7kW configurations. The appropriate model depends on the available voltage, socket, input plug, vehicle compatibility and required charging current.

Can the charging current be adjusted?

Yes. Depending on the model, available current settings may include 6A, 8A, 10A, 13A, 16A and 32A. The maximum current must not exceed the rating of the input plug, wall socket, electrical circuit or charging cable.

Does the A5 support three-phase charging?

The current A5 specification is based on single-phase charging. For higher-power or three-phase portable charging requirements, please ask AUPINS about other available product series.

Which vehicle connectors are available?

The current product range lists Type 1, Type 2 and GB/T options. Other connector requirements should be confirmed with the sales and engineering team.

Which input plugs are available?

Available or configurable plugs may include Schuko, CEE 7/4, NEMA and other market-specific options. The correct plug depends on the country, supply voltage and charging current.

Is the A5 suitable for European markets?

Type 2 versions with suitable European input plugs can be configured for European applications. The exact plug, rated current and applicable certification should be confirmed for each destination country.

Does the charger include leakage protection?

Available protection configurations include Type A residual-current protection and Type A + 6mA DC protection. The exact configuration must be confirmed for the selected model.

Is the A5 waterproof?

The control unit is designed with IP67 ingress protection under specified test conditions. Users must still keep electrical contacts clean and dry and follow the operating and storage instructions.

Can the charger be used with an extension cable?

The use of household extension cables, adapters or multi-socket outlets is not recommended unless the complete charging arrangement has been evaluated and approved for the required continuous current.

Can AUPINS customize the charger?

Yes. OEM and ODM options may include the input plug, vehicle connector, charging current, cable length, housing color, logo, labels, manual and packaging.

Can I order a sample?

Sample availability can be discussed after the required model, plug, connector, power rating and target country are confirmed.

What is the minimum order quantity?

MOQ depends on the selected standard model and customization requirements. Provide your estimated quantity to receive current commercial information.

Which certifications are available?

Certification availability depends on the exact A5 version and target market. Send the model, current rating, input plug, connector and destination country to receive the applicable documentation.
