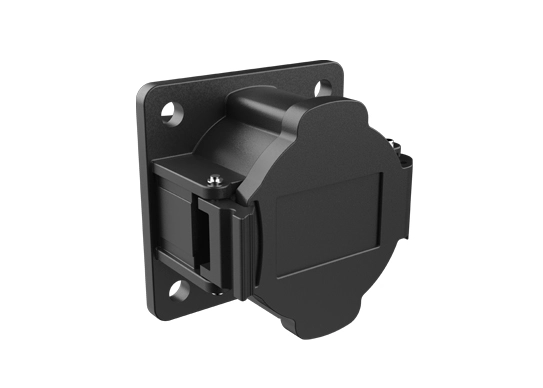

ccs2 plug
ccs2 plug
ccs2 plug

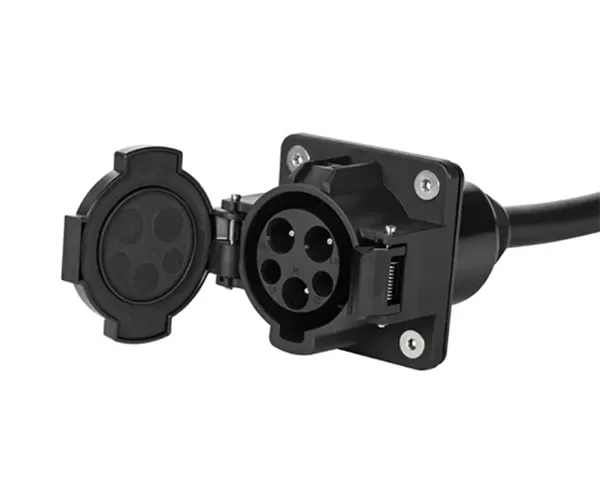

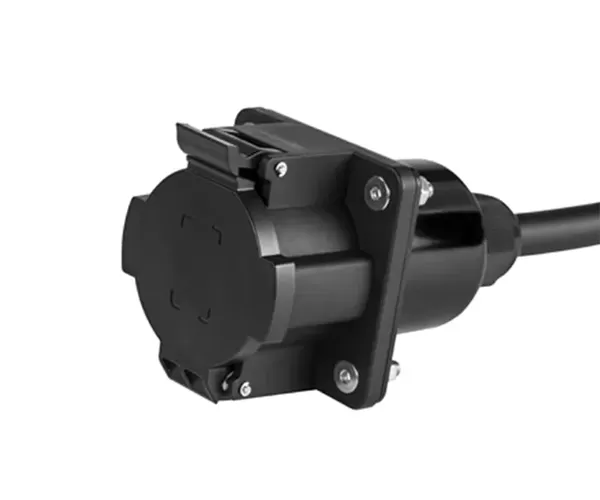

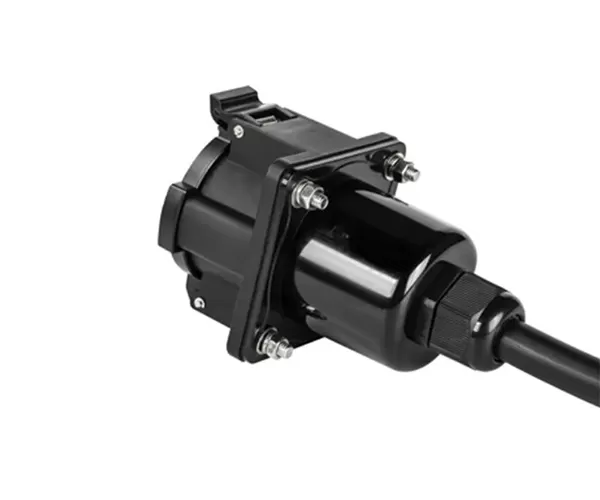

SAE AC Charging Socket

Conform to the provisions and requirements of SAE J1772-2012, It can applicable to all SAE electric vehicle charging guns.


Get a Quote

Features of SAE AC Charging Socket

  • Use copper alloy, silver plated surface Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it, plug conveniently.

  • XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present.

  • Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.

  • Reliable material, flame retardant, pressure resistance, abrasion resistance, impact resistance and high oil resistance.


Applications of SAE AC Charging Socket

1. Mechanical properties:

Insertion and extraction force: <100N

Mechanical life: ≥10000 times (no load)


2. Environmental performance :

Working temperature: -30℃～50℃

Protection level: Cover closed IP54; insertion gun ≥ IP55; tail outlet IP67


3. Electrical performance:

Rated voltage: AC input: 250V.ac

Rated current: AC input: 16A, 32A

Insulation resistance: >100MΩ (500V.dc)

Voltage resistance: 2500V.ac
