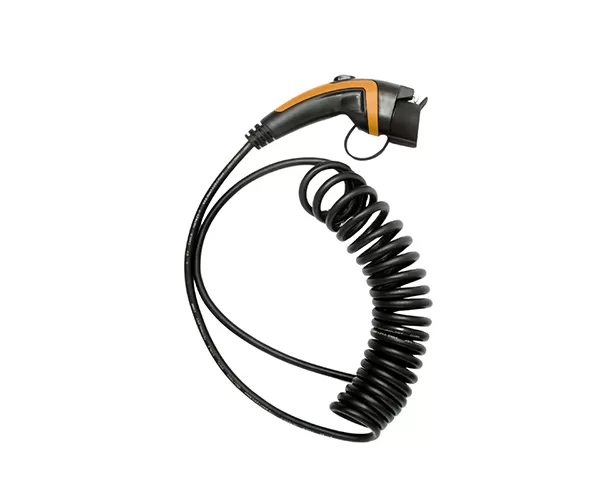

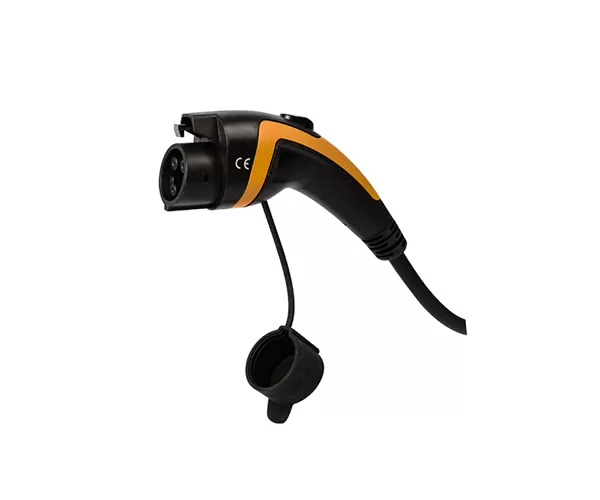

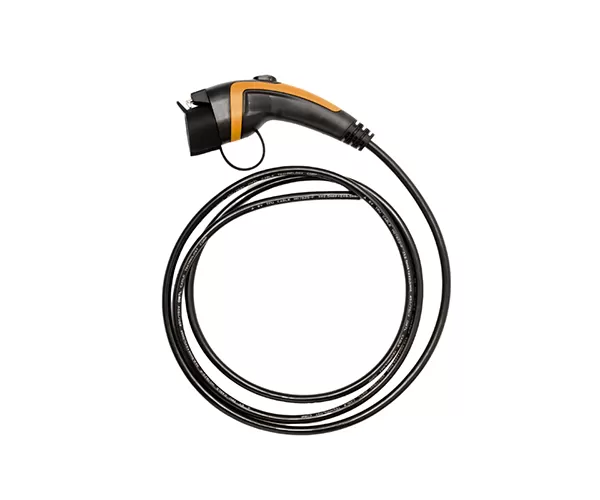

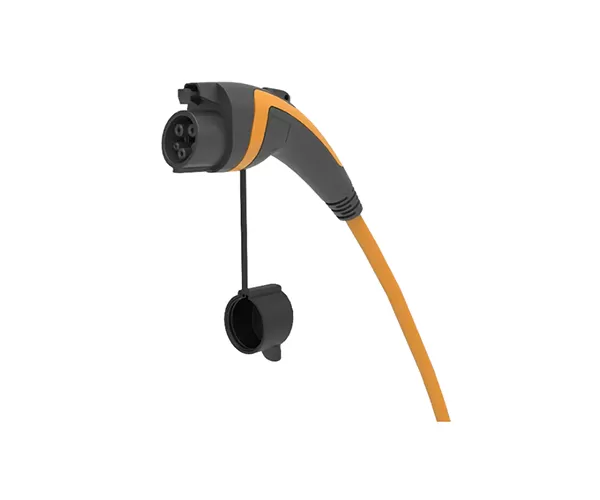

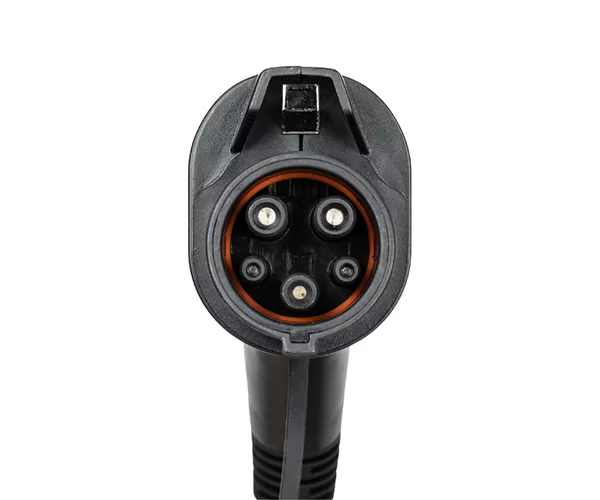

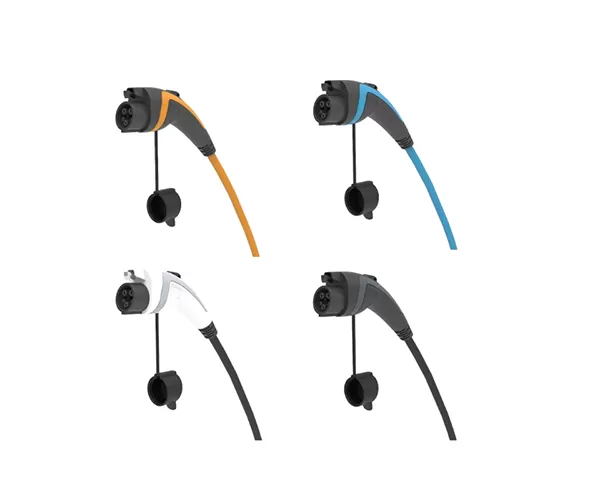

SAE AC EV Charging Cable

The SAE AC EV charging cablecomplies with IEC 62196-2 and SAE J1772 standards. It is mainly used in North America . Charging is available with metric AWG cables that can transmit up to 48A and 240V.


DATASHEET

Datasheet of SAE AC Charging Cable

Specifications of SAE AC Charging Cable

Mechanical Performance

Mated force

<100N

Mated cycles

>10000 Cycles (Unload)

Cable standard

GB/T 33594-2017

Outer sheath material

black, rubber

Environment Performance

Operate Temperature

-30℃ ~ +85℃

IP Class

IP55

Flame class

UL94-V0

Electrical performance

Rated voltage

250V AC

Rated current

16A/20A/32A/40A/48A

Insulation resistance

≥100MΩ

Withstand voltage

2000V AC
