Charging Pin Connector For Gb/T EV Charging Plug
Charging Pin Connector For Gb/T EV Charging Plug
Charging Pin Connector For Gb/T EV Charging Plug
Charging Pin Connector For Gb/T EV Charging Plug
Charging Pin Connector For Gb/T EV Charging Plug
Charging Pin Connector For Gb/T EV Charging Plug

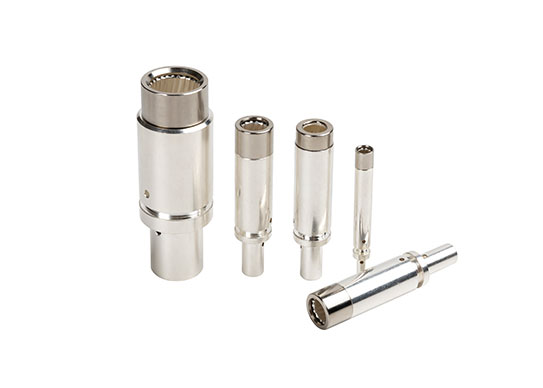

Charging Pin Connector For GB/T EV Charging Plug

AP GB/T AC terminals are suitable for GB/T standard charging plugs and sockets to the GB/T 20234.2-2015 requirements. It owns soft and stable mating forces and the material of contact parts mainly adopts beryllium bronze with silver or gold coating for plating technology.

Get a Quote

Features of AC/DC Terminal Pins


  • Mechanical life ≧10000 times

  • Flexible custom design to realize high current and special structure

  • High ampacity, low-temperature rise

  • Safe installation and connecting

  • Anti-shock and durability design

Material of AC/DC Charging Pin Connector Terminal Pins

（1）Material: Brass, Copper

（2）Contact Material: Beryllium bronze

（3）Plating Material: Gold, Silver

Tips: Customized according to customer requirements

Material of AC/DC Charging Pin Connector Terminal Pins

Specifications of Charging Pin Connector AC/DC Terminal Pins

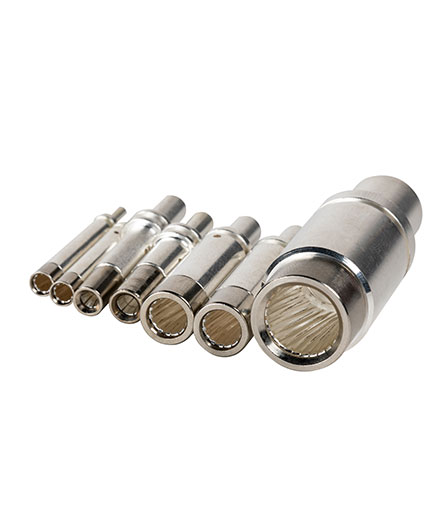

DC GB/T Terminal
Itemdimension（mm）Rated current and function
LN terminal12250A/200A/125A/80A
PE terminal6earthing
cc1 terminal3signal
cc2 terminal3signal


AC GB/T Terminal
Itemdimension（mm）Rated current and function
LN terminal6200A/32A/16A
PE terminal663A/32A/16A
CC terminal3signal
