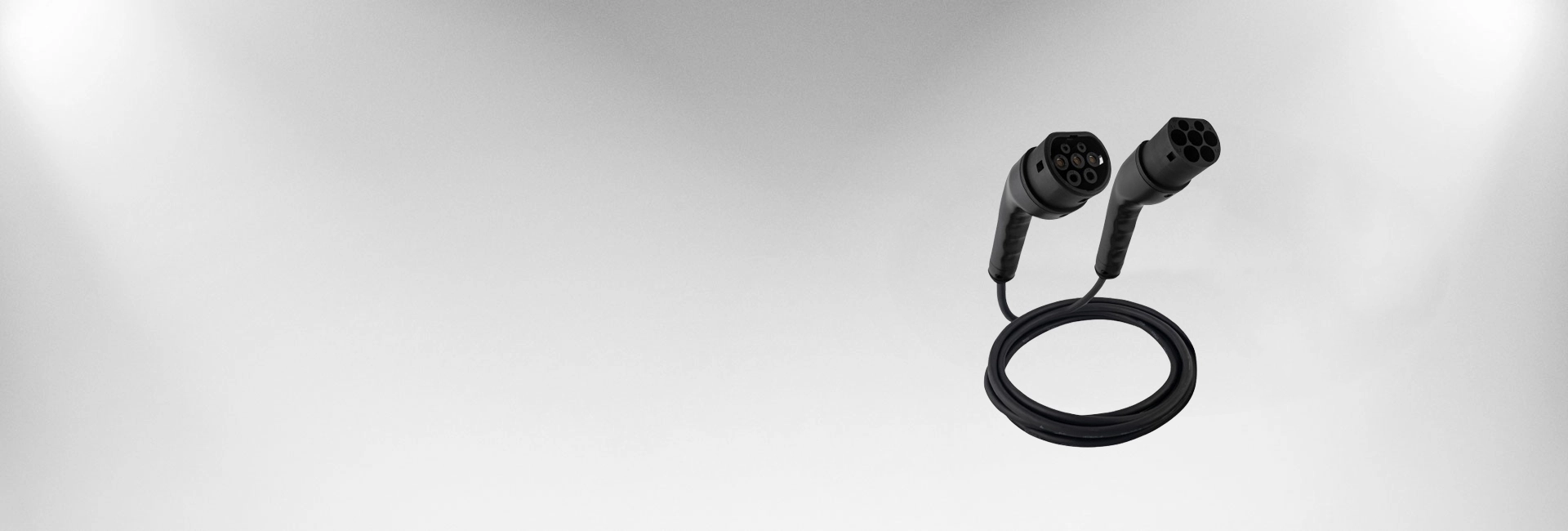

EV Charging Cable

AUPINS Charging Cable complies with IEC 62196-2 (also known as Type 2) are specifically designed for electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs) to ensure safe and efficient charging throughout the world, especially in Europe and many regions where international standards are adopted. The standard specifies the size, electrical characteristics and safety requirements of charging interfaces, thereby facilitating interoperability between different brands of electric vehicles and charging infrastructure. We offer you the European standard AC type 2 open-end charging cable and Type2 to Type2 charging cable, and we can also customize the cable type and length as required. OEM/ODM is our advantage for such products.

EV Charging Cable Specification

Type 2 Open-end Charging Cable

Code

Type

Current/Voltage

Wire Harness Specifications

8001

AP-EVP-116-TC2

16A/250V

3*2.5mm²+2*0.5mm²/OD 10.2±0.3mm/Black

8002

AP-EVP-132-TC2

32A/250V

3*6mm²+2*0.5mm²/OD 12.8±0.3mm/Black

8003

AP-EVP-316-TC2

16A/480V

5*2.5mm²+2*0.5mm²/OD 12.8±0.3mm/Black

8004

AP-EVP-332-TC2

32A/480V

5*6mm²+2*0.5mm²/OD 16±0.3 mm/Black

Statement: The cable length can be customized according to your demand

Type 2 -Type 2 Charging cable

Code

Type

Current

Cable specification

8005

AP-EVP-M2F2-116

16A/250V

3*2.5mm²+2*0.5mm²/OD 10.2±0.3mm/Black

8006

AP-EVP-M2F2-132

32A/250V

3*6mm²+2*0.5mm²/OD 12.8±0.3mm/Black

8007

AP-EVP-M2F2-316

16A/480V

5*2.5mm²+2*0.5mm²/OD 12.8±0.3mm/Black

8008

AP-EVP-M2F2-332

32A/480V

5*6mm²+2*0.5mm²/OD 16±0.3 mm/Black

Statement: The cable length can be customized according to your demand

EN50620 H07BZ5-F

Code

Type

Rated Current/voltage

Cable Specification

9001

AP-H07BZ5-F 3*2.5+2*0.5

16A/250V

3*2.5mm²+2*0.5mm²/OD 10.2±0.3mm/Black

9002

AP-H07BZ5-F 3*6+2*0.5

32A/250V

3*6mm²+2*0.5mm²/OD 12.8±0.3mm/Black

9003

AP-H07BZ5-F 5*2.5+2*0.5

16A/480V

5*2.5mm²+2*0.5mm²/OD 12.8±0.3mm/Black

9004

AP-H07BZ5-F 5*6+2*0.5

32A/480V

5*6mm²+2*0.5mm²/OD 16±0.3 mm/Black

Statement: The cable length can be customized according to your demand

AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
