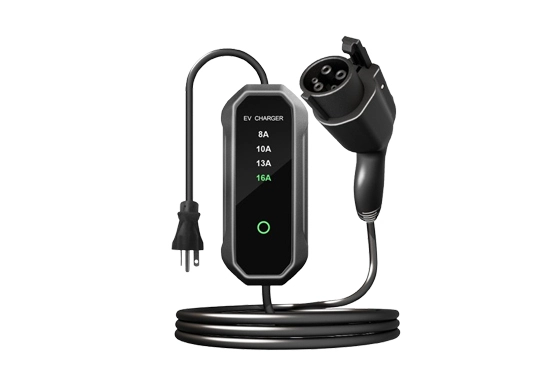

J1772 SAE Type 1 Portable EV Charger
J1772 SAE Type 1 Portable EV Charger
IEC62196 Type 2 Portable EV Charger
IEC62196 Type 2 Portable EV Charger
DC EV Charger
DC EV Charger
AC Socket Cable(AC Socket→Battery)
AC Socket Cable(AC Socket→Battery)
PDU Cable(Battery→Motor)
PDU Cable(Battery→Motor)
Motor Wire
Motor Wire
PTC Cable(Battery→Air Conditioner)
PTC Cable(Battery→Air Conditioner)
DC Socket Cable(DC Socket→Battery)
DC Socket Cable(DC Socket→Battery)
Ground Wire
Ground Wire
Three Phase Power Line
Three Phase Power Line
Air Pump Line→Compressor
Air Pump Line→Compressor
CHAdeMO DC Charging Socket
CHAdeMO DC Charging Socket
GB/T AC Charging Socket
GB/T AC Charging Socket
GB/T AC Electronic Lock
GB/T AC Electronic Lock
GB/T DC Charging Socket
GB/T DC Charging Socket
SAE AC Charging Socket
SAE AC Charging Socket
CCS1 DC Charging Socket
CCS1 DC Charging Socket

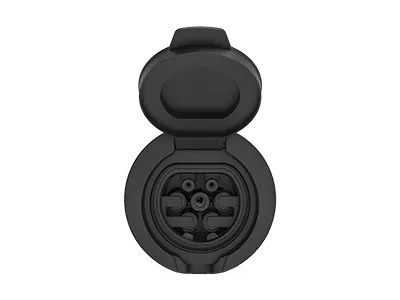

IEC AC Charging Socket
IEC AC Charging Socket
CCS2 Charging Socket
CCS2 Charging Socket
IEC Electronic Sockets
IEC Electronic Sockets
NACS Vehicle Charging Socket
NACS Vehicle Charging Socket
CHAdeMO to GB/T Adapter
CHAdeMO to GB/T Adapter
GB/T to CCS2 Adapter
GB/T to CCS2 Adapter
CCS1 to GB/T Adapter
CCS1 to GB/T Adapter
CCS2 to GB/T Adapter
CCS2 to GB/T Adapter
AUPINS A5 Series Portable EV Charger
AUPINS A5 Series Portable EV Charger
AUPINS C5 Series AC Wall-mounted Charger
AUPINS C5 Series AC Wall-mounted Charger
AUPINS EF040 Series Public DC Fast EV Charger
AUPINS EF040 Series Public DC Fast EV Charger
AUPINS EF160 Series DC Fast Charger
AUPINS EF160 Series DC Fast Charger
AUPINS EF400 series 360 kw/400kw Public DC Quick Charger
AUPINS EF400 series 360 kw/400kw Public DC Quick Charger
AUPINS S Series Type 2 IEC 62196 Charging Cable
AUPINS S Series Type 2 IEC 62196 Charging Cable
AUPINS T3 Series Portable Charger Mode2 Pro
AUPINS T3 Series Portable Charger Mode2 Pro
Ultrasonic Terminal Welding Machine
Ultrasonic Terminal Welding Machine
AP-0515 EV DC Charging Pile Controller Series
AP-0515 EV DC Charging Pile Controller Series
AP-0516 EV DC Charging Pile Controller Series
AP-0516 EV DC Charging Pile Controller Series
AP-0511 EV DC Charging Pile Controller Series
AP-0511 EV DC Charging Pile Controller Series
AP-0510 EV DC Charging Pile Controller Series
AP-0510 EV DC Charging Pile Controller Series
Energy Efficiency Secondary Oil Immersed Transformer
Energy Efficiency Secondary Oil Immersed Transformer
2kW On-board Charger Assembly
2kW On-board Charger Assembly
3.3kW On-board Charger Assembly
3.3kW On-board Charger Assembly
6.6kW On-board Charger Assembly
6.6kW On-board Charger Assembly
20kW On-board Charger Assembly
20kW On-board Charger Assembly
Application
Technologies
Resources
Service
About AUPINS
News
Contact Us
WHAT ARE YOU LOOKING FOR?
Aupins Technology Co., Ltd.
Home
Home
Products
Products
Application
Application
Technologies
Technologies
Resources
Resources
Service
Service
About AUPINS
About AUPINS
News
News
Contact Us
Contact Us
gb t dc charger
gb t dc charger
gb t dc charger

NACS Vehicle Charging Socket

NACS charge inlet is for the electric vehicles adopt NACS charging standards. Its module design complies with the SAE J3400 standard. Cable length can be customized as a cu


Get a Quote

Features of NACS Vehicle Charging Socket

  • The NACS charge port is a combination of AC/DC charging the highest amperage is 350A, rated voltage is 1000V DC.

  • The Tesla charge inlet assembly is with cables, the cable length can be customized according to customers' requirements.

  • The J3400 NACS charge inlet is a module design.

  • All parts comply with RoHS, OEM service is welcome


Specifications of NACS Vehicle Charging Socket

NACS Vehicle Plug/Socket

Code

Type

Rated current

Rated voltage

Test voltage

13001

AP-NACS-Plug

65A/60A/50A/48A/40A/32A/16A

500VDC/240VAC

2KV(50Hz/1min)

13002

AP-NACS-CS

350A/300A/250A/200A/150A/125A/80A/65A/60A/50A/48A/40A/32A/16A

1000VDC

3KV(50Hz/1min)


Applications of NACS Vehicle Charging Socket

1. Mechanical properties:

unmated: IP2X

Safety class: Ⅱ

Insertion/withdrawal force: <90N

Locking system: Snap-in

Connector System: ￠9mm

Degree of protection, mated: Type 3R

Durability: 10000 Mating Cycles


2. Environmental performance:

Waterproof Level: IP67

Insulation material: PC

Flame class: UL94-VO

Ambient temperature range: -40℃..+50℃

Operating temperature: -40℃-105℃

Salt mist spray test. degree of severity 5: IEC 60068-2-52

Contact material: Copper Alloy, Silver plated


3. Electrical performance:

Rated voltage: 1000VDC

Rated current: 350A/300A/250A/200A/150A/125A/80A/65A/60A/50A/48A/40A/32A/16A

Test voltage: 3KV(50Hz/1min)

Contact resistance of plug connectors: 0.35mΩ Max
