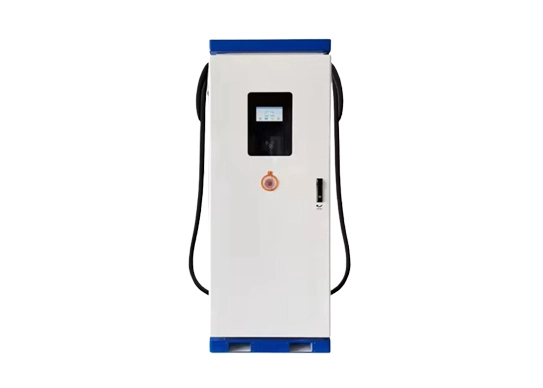

dc charging station floor fd 1
dc charging station floor fd 1

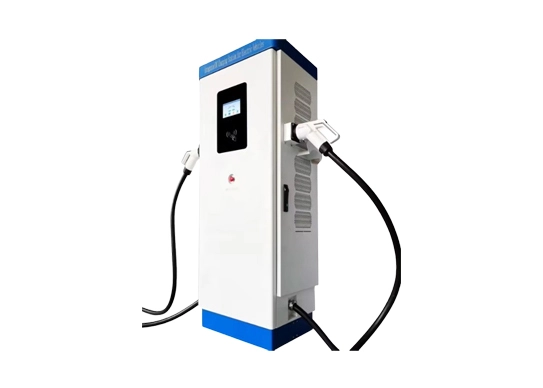

dc charging station floor fd 2
dc charging station floor fd 2
dc charging station floor fd 1
dc charging station floor fd 2

DC Charging Station Floor-FD

As a professional supplier of new energy vehicle charging accessories , AUPINS is committed to providing services to achieve sustainable development of the electric vehicle (EV) industry. This floor DC charging station of AUPINS is designed to meet the fast charging needs of electric vehicle users in different scenarios. This charging station integrates advanced DC fast charging technology, which is efficient, flexible and convenient, and provides strong endurance support for electric vehicles.

Get a Quote

Features of DC Charging Station Floor-FD

  • Low standby power consumption, the whole machine standby power consumption is less than 5w, reducing operating costs

  • Applicable to more models, compatible with DC input, and has wider application scenarios

  • Automatically adjust voltage and current to cooperate with electric vehicle BMS.

  • Connect with OCPP/cloud fast charging to achieve commercial OEM+ODM

  • Support scanning code and swiping card

  • Complete safety protection, the AC side can be disconnected in case of emergency shutdown, which is more reliable

Specifications of DC Charging Station Floor-FD

DC charging station floor-FD

Code

Type

Output power(KW)

Output current(A)

Input current(A)

Display

21001

AP-TA-DC-80FD

80

200

125

7-inch color touchscreen

21002

AP-TA-DC-120FD

120

0-250

190

21003

AP-TA-DC-150FD

150

230

21004

AP-TA-DC-180FD

180

285

21005

AP-TA-DC-240FD

240

400

Charging protocol: GBT27930/CHADEMO 2.0/ DIN 70121 OCPP 1.6(JSON)/ISO15118


Applications of DC Charging Station Floor-FD

1. Mechanical properties:

Display: 7-inch color touchscreen

Input cable length: 0m (customizable)

Cable length: 5m (customizable)

Number of guns: one/two (CCS-1/CCS-2/CHAdeMO/GBT)

Charging mode: fast or slow charging, automatic switching

Charging mode: ARD/APP/manual

Weight: 200KG/230KG/310KG/320KG

Size(mm): 730*500*1700

Interface standard: CCS /CHADEMO /GB/T

Standard configuration: CAN/485

Ethernet optional configuration: GPRS/4G


2. Electrical performance:

Output power: 80KW/120KW/150KW/180KW/240KW

Output voltage: 200-750V (200-1000V optional)

Output current: 200A/0-250A

Input voltage: AC 380V±20%

Input current: 125A/190A/230A/285A/400A

Frequency: 50/60 Hz


3. Environmental performance:

Operating temperature: -20℃ to +50℃

Protection level: IP 54

Altitude: 2000m

Working relative humidity: RH≤95%
