AUPINS Technology, a leading global partner for ultrasonic wire harness crimping solutions, provides intelligent automated cable processing equipment that integrates cutting, stripping, and terminal crimping processes. We are focused on driving the industry's transformation towards intelligent and energy-efficient manufacturing, helping customers address cost and quality challenges, and driving future innovation in wire harness processing.
Utilizes advanced ultrasonic welding technology and industrial computer-controlled automated welding, supporting multiple welding modes
Low maintenance costs and easy operation
Fault prevention and quality monitoring, password protection, and data storage
Widely used in automotive, instrumentation, communication equipment, and home appliance industries

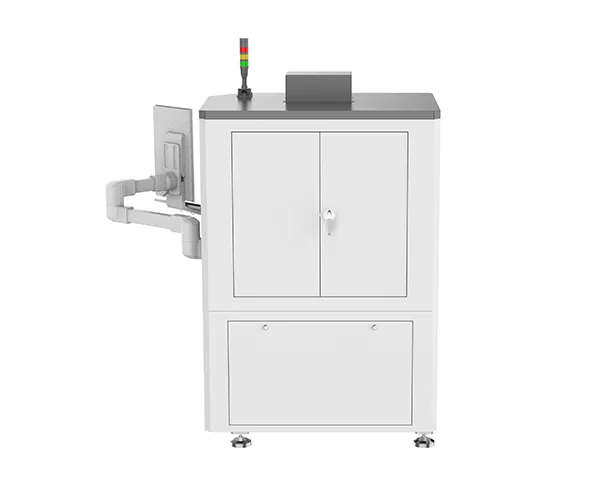

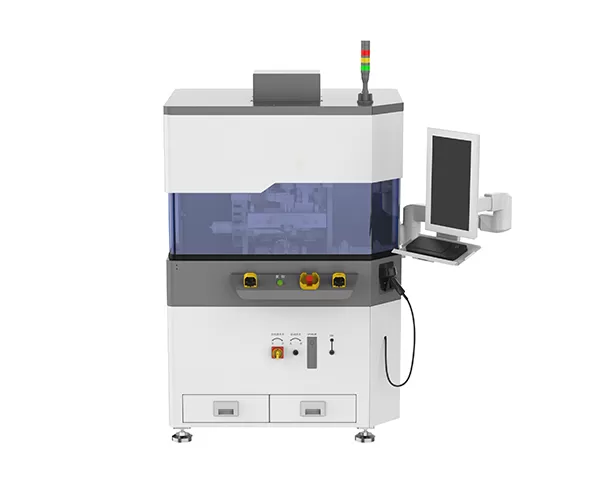

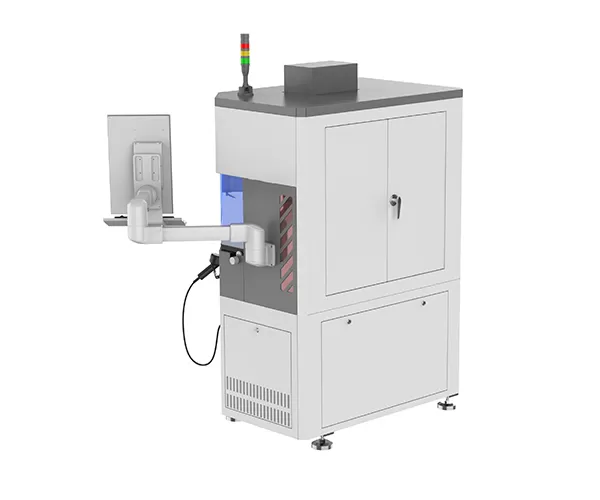

Specifications of Ultrasonic Wire Harness Welding Machine | |
Mechanical Performance | |
Size | 2060*1010*2300mm |
Weight | 860kg/944kg |
Data storage | 100,000 sets of product welding data |
Production efficiency | 120pcs/H-150pcs/H |
Copper wire welding range | 16mm²-70mm²/16mm-120mm²/35mm²-150mm² |
Aluminum wire welding range | 16mm²-85mm²/16mm²-150mm²/35mm²-200mm² |
Alarm function | Welding result monitoring, control of welding time, energy, pressure, amplitude power, pre-welding height, and post-welding height |
Interface display | Displays welding time, energy, power, pressure, number of times, amplitude, frequency and other information |
Display mode | 21.5-inch touch all-in-one computer 21.5inch |
Electrical performance | |
Power | 6200W/13000W/18000W |
Input voltage | AC380V 50Hz |
Air source pressure | >0.5MPa |
