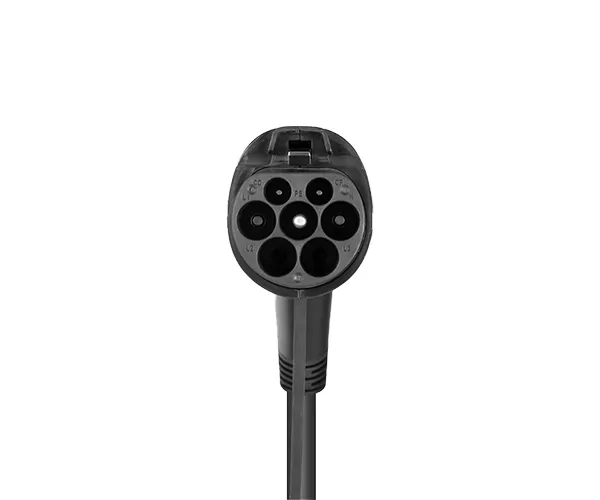

The GB/T AC straight charging Connector is suitable for single-phase and three-phase AC charging in China in line with GB/T20234.1 standard, the charging gun metric cable can transmit up to 48A current and up to 440V voltage.This GB/T AC straight charging Connector is suitable for pile-end power supply plugs, and the locking bayonet anti-loosening device can ensure a firm and reliable connection.
Built-in switch and electronic lock module make maintenance and replacement easier.

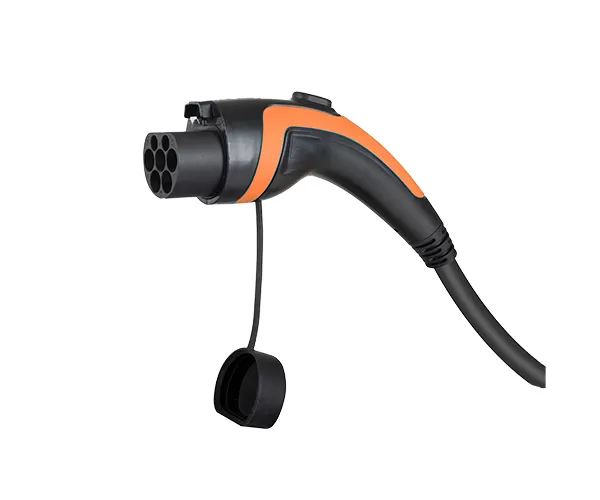

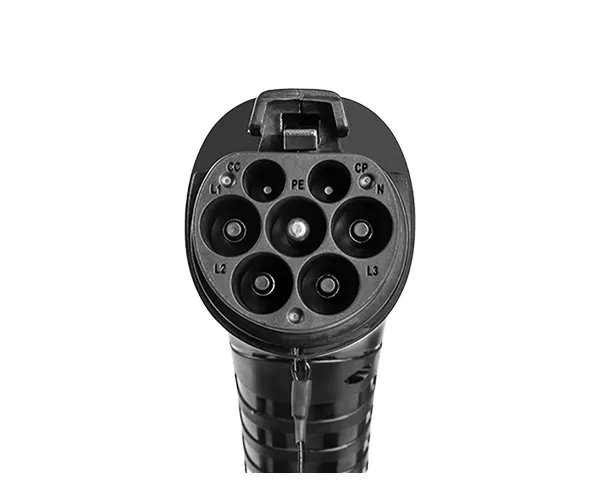

The vehicle connector features a built-in lock and protective cover.
We can customize cable lengths and redesign according to customer requirements.
The handheld design is ergonomic and comfortable to hold.
Specifications of GB/T AC Straight Charging Connector(Pile end power plug) | |
Mechanical Performance | |
Mated force | <100N |
Mated cycles | ＞10000 Cycles (Unload) |
Outer sheath material | black, rubber |
Environment Performance | |
Operate Temperature | -40℃ ~ +85℃ |
IP Class | IP55 |
Flame class | UL94-V0 |
Electrical performance | |
Rated voltage | 250V AC |
Rated current | 16A/32A/ |
Insulation resistance | ≥100MΩ |
Withstand voltage | 2000V AC |
