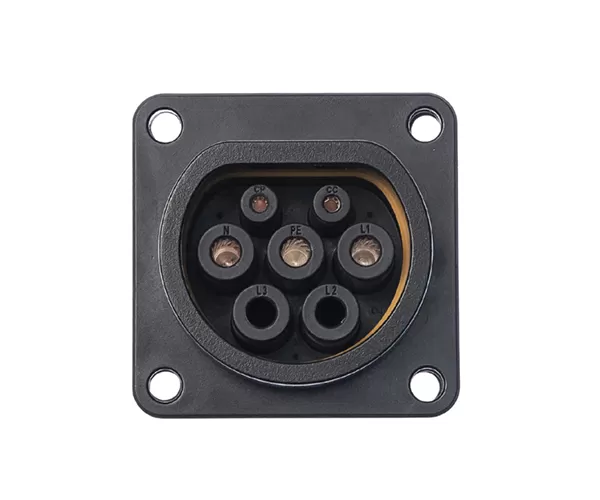

AUPINS GB/T AC Charging Socket complies with the regulations and requirements of GB/T20234.2-2015. The socket has efficient charging and safety protection functions, and has built-in overheating protection and short-circuit power-off system to provide comprehensive protection for your charging process. Compact design, easy to install, suitable for home and commercial use.
GB/T AC Charging Socket conforms to the provisions and requirements of GB/ T 20234.2-2015IEC62196-1,IEC 62196 -3

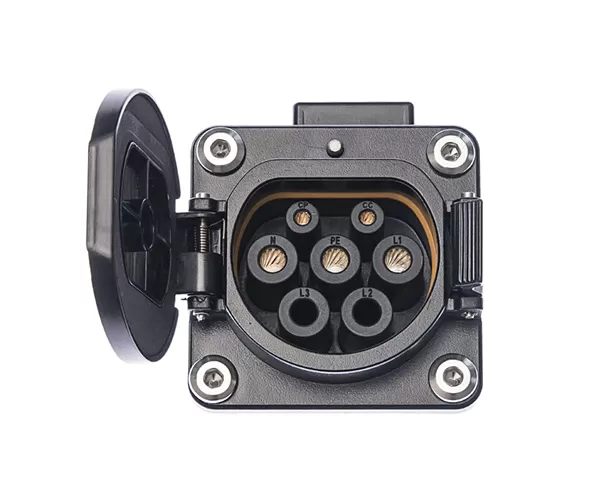

Our ev socket with beautiful appearance and prevention cap, which can be installed on the left side, the right side or the front of it
Special internal waterproof protection, achieving an IP55 protection rating (operating condition). The outer shell effectively isolates water from the vehicle body, enhancing safety even in harsh weather or special conditions
Reliable material, flame-retardant, pressure-resistant, abrasion-resistant, impact-resistant
Specifications of GB/T AC Charging Socket | |
Mechanical Performance | |
Insulation resistance | ＞1000MΩ (1000V.dc) |
Insertion and extraction force | <100N |
Mechanical life | ≥10,000 times (no load) |
Environment Performance | |
Working temperature | -30℃～50℃ |
Shell material | thermoplastics, flame retardant grade UL94-0 Contact - tube: copper alloy, silver plated |
Electrical performance | |
Rated voltage | 250V/440V |
Rated current | 10A, 16A, 32A |
Insulation resistance | > 500MΩ |
Pins temperature rise | <50K |
Withstand voltage | 2500V |
Contact impedance | 0.5mΩMax |
