AUPINS energy storage connectors offer a fast, safe, and cost-effective solution for energy storage module systems, featuring high current carrying capacity, low resistance design, long lifespan, reliability, and safety protection. Customized design and manufacturing are available to meet the needs of various application scenarios during the design and manufacturing of energy storage systems.
Utilizing low-resistance materials and contact structures to reduce energy loss and heat generation, improving energy transfer efficiency
Special material selection and structural design provide excellent corrosion resistance and high-temperature resistance, offering superior protection with an IP67 protection rating
Dual color and button location markings prevent short circuits caused by mis-insertion
Complies with RoHS/REACH environmental requirements, CE certified, and can be customized to customer needs

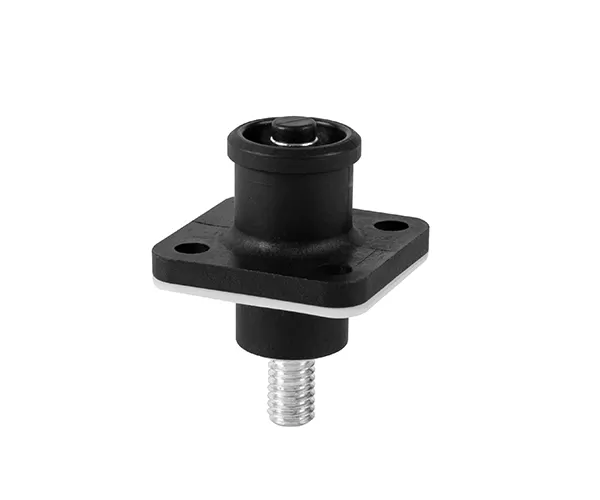

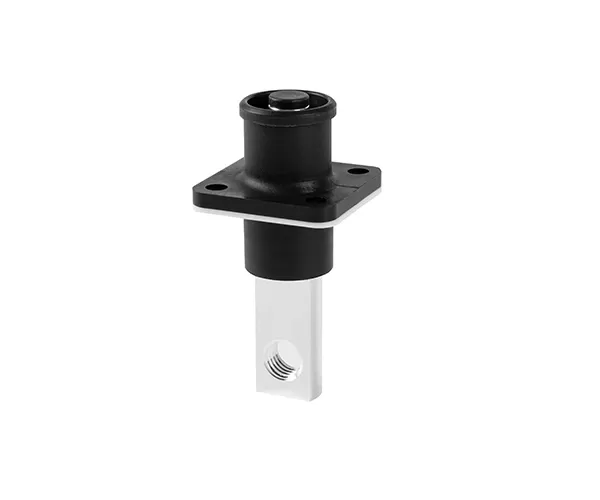

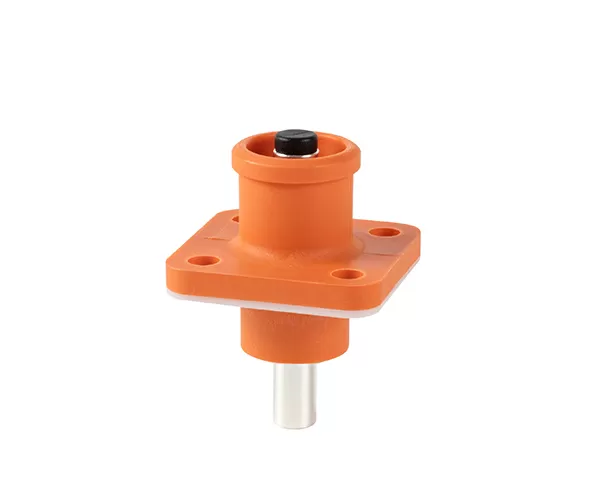

Specifications of 120A-300A ESS Plug | |
Mechanical Performance | |
Plastic shell | PA66+G/F |
Sealing ring | Silicon rubber |
Contact terminal | T2 Copper Alloy, Silver-plated |
Mechanical life | 500 times |
Environment Performance | |
Operating temperature | -40℃~125℃ |
Protection degree | IP67 |
Flame-retardant grades | UL94-V0 |
Electrical performance | |
Rated current | 5.7mm (120A), 8.0mm (200A), 10.3mm (300A) |
Contact resistance | 0.2mΩ Max |
Insulation resistance | ≥5000MΩ |
Working voltage | 1000V/1500V AC/DC |
Withstand voltage | 5200V/6800V AC/DC |
