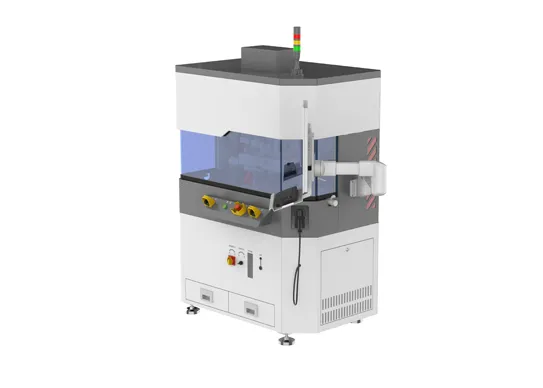

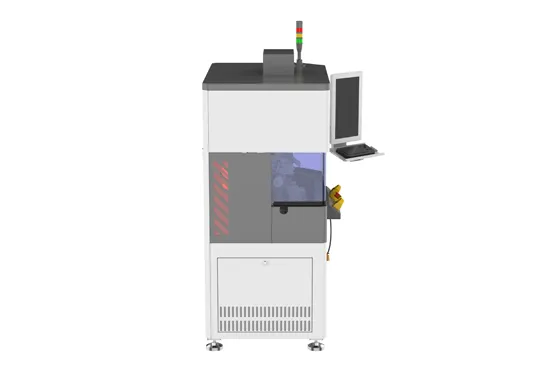

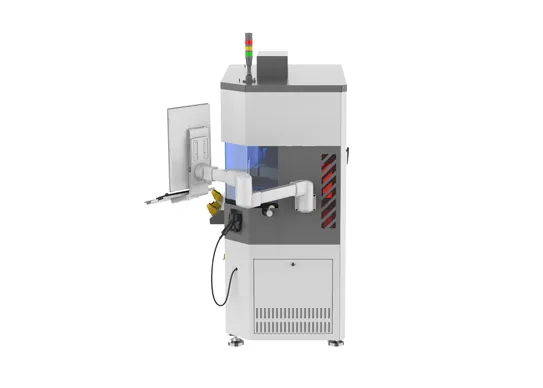

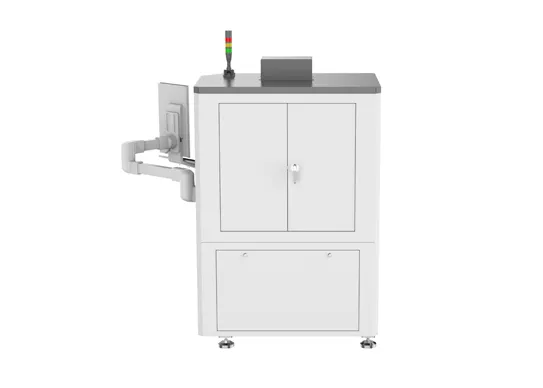

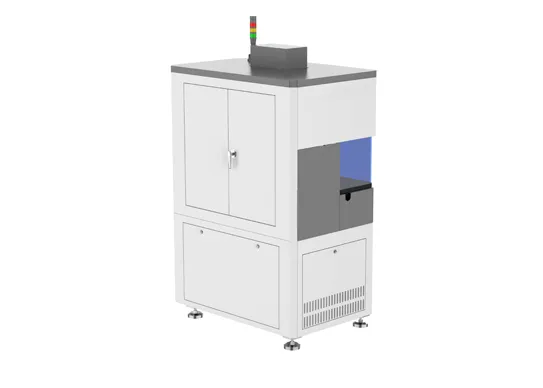

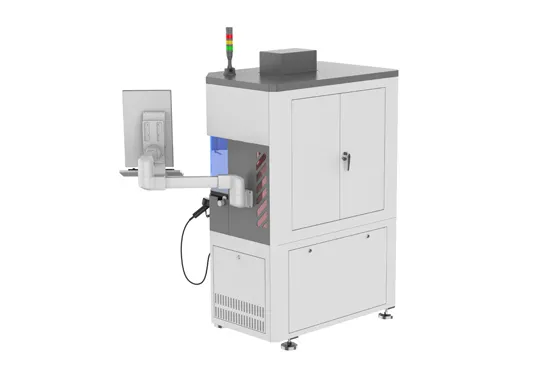

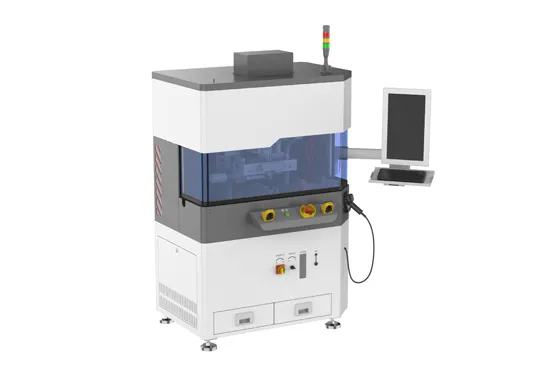

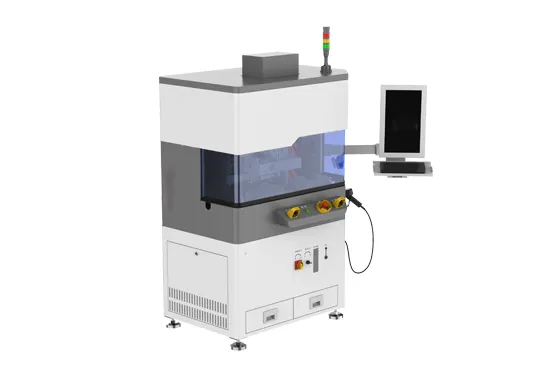

Ultrasonic Terminal Welding Machine

Name: Ultrasonic Terminal Welding Machine
Brand: Aupins Technology Co., Ltd.
Availability: InStock

AUPINS ultrasonic terminal welding machine is a vertical CNC welding machine with a lifting adjustment that meets ergonomic requirements. It adopts a four cylinder dual solenoid valve control system, which runs stably and is operated on an industrial touch screen with intuitive data. The independently developed transducer, generator, amplitude lever, welding head, etc. By AUPINS greatlyimprove the overall performance of the machine. It is suitable for welding copper wire/tinned wire/alumi-num wire and copper/aluminum terminals, and is widely used in various fields such as automobiles, instruments, communication equipment, and household appliances.

Get a Quote 

Features of Ultrasonic Terminal Welding Machine

Adopting advanced ultrasonic welding technology
Easy to operate
Automated welding is controlled by industrial computers
Password protection and data storage
Low maintenance costs
Anti empty or error welding function
Data storage
Error prevention and quality monitoring
Supports multiple welding modes

Mechanical properties

Size: 2060*1010*2300mm

Weight: 860kg/944kg

Data storage: 100,000 sets of product welding data

Production efficiency: 120pcs/H-150pcs/H

Copper wire welding range: 16mm²-70mm²/16mm-120mm²/35mm²-150mm²

Aluminum wire welding range: 16mm²-85mm²/16mm²-150mm²/35mm²-200mm²

Alarm function: Welding result monitoring, control of welding time, energy, pressure, amplitude power, pre-welding height, and post-welding height

Interface display: Displays welding time, energy, power, pressure, number of times, amplitude, frequency and other information

Display mode: 21.5-inch touch all-in-one computer 21.5inch

Electrical performance

Power: 6200W/13000W/18000W

Input voltage: AC380V 50Hz

Air source pressure: >0.5MPa

Ultrasonic Terminal Welding Machine
Code	Type	Power(W)	Input voltage(V)	Copper wire welding range	Aluminum wire welding range	Size(mm)	Weight（kg)
29001	AP-UT01	6200W	AC 380V50Hz	16mm²-70mm²	16mm²-85mm²	206010102300mm	860kg
29002	AP-UT02	13000W		16mm²-120mm²	16mm²-150mm²		944kg
29003	AP-UT03	18000W		35mm²-150mm²	35mm²-200mm²		944kg
