Flexible Towline chain cable

Flexible Towline chain cables are widely used in CNC machine tools, vertical lathes, glass machinery, woodworking machinery, cutting machines, engraving machines, doors and windows machinery and other automated machinery and equipment. Due to the special cable structure, the biggest feature of this cable is its good flexibility. Other characteristics include bending resistance, folding resistance, wear resistance, oil resistance, etc., for mobile use under continuous reciprocating motion. the product meets CE, UL2517, UL20276 and RoHS environmental protection standards.

Applicable environment:  Fixed installation:-40 ℃ ~ +80 ℃ mobile use:0℃~70℃

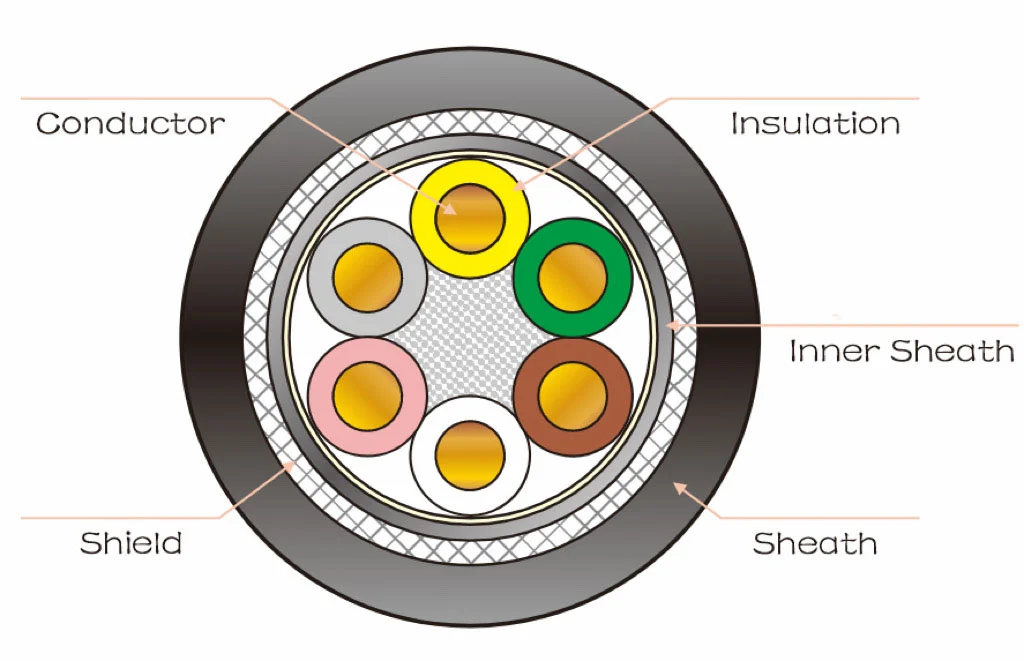

Conductor: Tinned annealed copper

Rated voltage: 30V,300V/500V

Insulation:Special heat-resistant PVC, high-strength elastomer

Sheath: Special heat-resistant PVC, high-strength elastomer

Insulation resistance: 100MΩ.km(20℃)、15MΩ.km(20℃)、20MΩ.km(20℃)


Specification of Flexible Towline chain cable

Power control cableProduct CodeSpecificationApprox.overall
Diameter
Copper ContentWeight
UL300VTFPC200.02.052×0.54.91036
TFPC200.03.053G0.55.11442
TFPC200.07.057G0.57.13379
TFPC200.10.0510G0.58.147106
TFPC200.12.0512G0.58.556124
TFPC200.16.0516G0.59.475156
TFPC200.18.0518G0.59.884171
TFPC200.24.0524G0.511.7112226
TFPC200.25.0525G0.511.7117233
TFPC200.30.0530G0.512.1140269
UL300V ShieldTFPC201.02.052×0.55.31947
TFPC201.03.053G0.55.52453
TFPC201.04.054G0.56.12965
TFPC201.05.055G0.56.63576
TFPC201.07.057G0.57.54694
TFPC201.18.0518G0.510.4116206
TFPC201.24.0524G0.512.3149267
TFPC201.25.0525G0.512.3154274
TFPC201.30.0530G0.512.7179312
TFPC201.02.0752×0.756.43166
Towline Polyether UL300TFPC220.02.052×0.54.91034
TFPC220.03.053G0.55.11441
TFPC220.04.054G0.55.51949
TFPC220.12.0512G0.58.556121
TFPC220.16.0516G0.59.475153
TFPC220.18.0518G0.59.884168
TFPC220.24.0524G0.511.7112221
Towline Polyether UL600V ShieldTFPC230.02.052×0.55.301037
TFPC230.03.053G0.55.561545
TFPC230.04.054G0.56.001954
TFPC230.05.055G0.56.492464
TFPC230.07.057G0.57.713385
TFPC230.25.0525G0.512.67118251
TFPC230.30.0530G0.513.20141291
Data transmission cableProduct CodeSpecificationApprox.overall
Diameter
Copper ContentWeight
Towline UL-PVCTFEC201.03.143×0.144.51028
TFEC201.04.144×0.144.71232
TFEC201.06.146×0.145.31542
TFEC201.07.147×0.145.81850
TFEC201.10.1410×0.146.82468
TFEC201.12.1412×0.146.72670
TFEC201.14.1414×0.146.92972
TFEC201.20.1420×0.147.83995
TFEC201.02.252×0.254.61131
TFEC201.03.253×0.254.81334
Towline UL-PVC TwistTFEC211.02.142×2×0.145.51340
TFEC211.03.143×2×0.146.21751
TFEC211.04.144×2×0.146.62159
TFEC211.05.145×2×0.147.12469
TFEC211.06.146×2×0.147.62878
TFEC211.08.148×2×0.148.936102
TFEC211.10.1410×2×0.149.944126
Towline-TPEETFEC321.02.142×2×0.145.51338
TFEC321.03.143×2×0.146.21748
TFEC321.04.144×2×0.146.62156
TFEC321.05.145×2×0.147.12465
TFEC321.06.146×2×0.147.62874
TFEC321.08.148×2×0.148.93697
TFEC321.10.1410×2×0.149.944120
TFEC321.02.252×2×0.256.21545
AP can customize cables for customers, the products shown are only a part, and more models can be obtained online for more information
