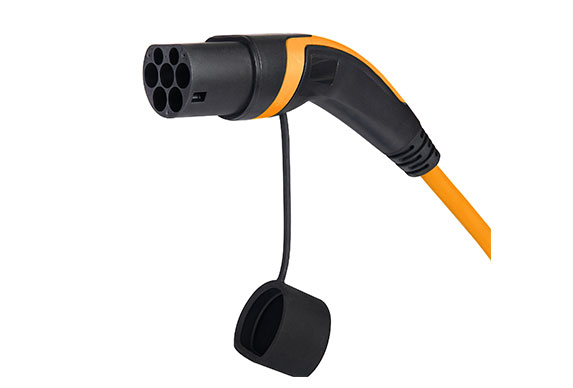

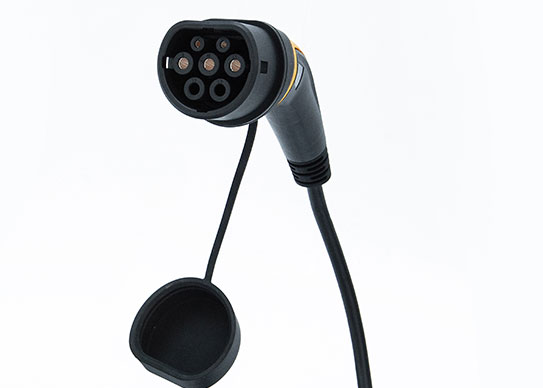

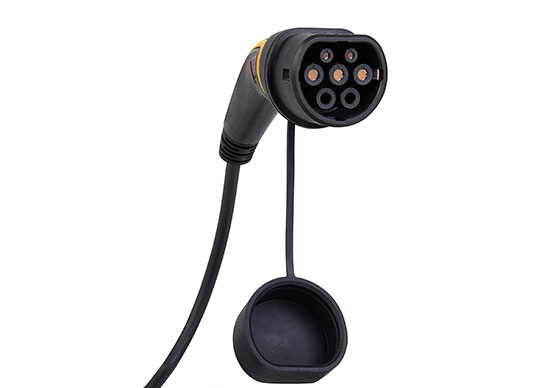

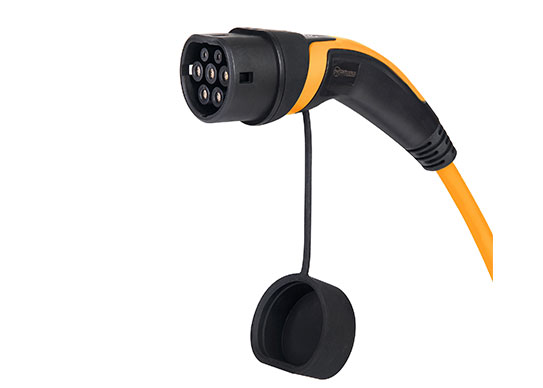

IEC 62196-2 Charging Connector

AP IEC AC charging plugs conform to IEC 62196-2 2-llb provisions and requirements. It is compatible with different brand vehicles and ensures safety during the charging period.

Get a Quote

Features of IEC 62196 Types-2 Connector for Charging


  • Conform to the requirement of IEC 62196-2 2-llb.

  • The bottom of the type-2 connector pins is designed with safety insulation to prevent direct human contact.

  • The IEC type-2 connector adopts dual color coating technology, customized color accepted.

  • The IEC 62196 connector prevents overheating safety hazards effectively, and the protection level IP55 (working condition) meets the diversity application situation.

Specifications of IEC 62196 Type-2 Connector for Charging

Product codeAP-IECAC
Rated current16A, 20A, 32A
Rated voltage250V, 480V
Insulation resistance>1000MΩ (DC500V)
Withstand Voltage2500V
Contact resistance0.5mΩMax
Pins temperature rise:<50K
