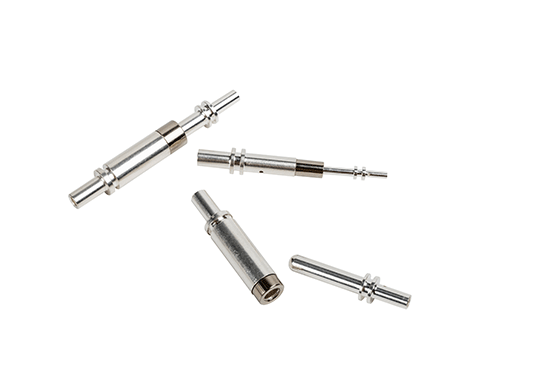

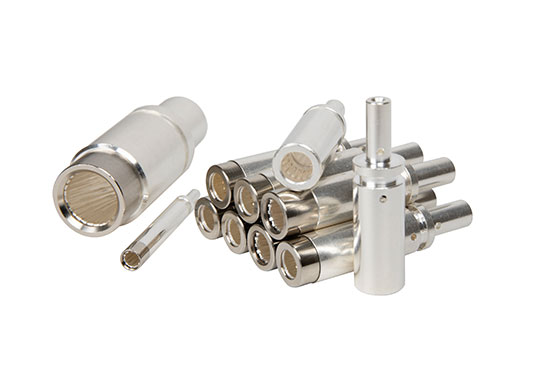

AC IEC Brass Connector Pin

AP IEC AC terminals are designed for the IEC standard charging plug and socket to meet IEC62196 regulations and requirements. This charger connector pin features a low and stable mating force and enables stable and reliable transmission.

Feature of AC Brass Connector Pin


  • Mechanical life ≧10000 times

  • High current

  • Low-temperature rise

  • High reliability

  • High mechanical durability

  • Soft mating force



Highlights of AC IEC Brass Connector Pin


1. High Conductivity

  • The AC IEC Brass Connector Pin offers excellent electrical conductivity, ensuring efficient and reliable power transfer. The brass material's superior conductive properties reduce energy loss, making it ideal for various electrical applications.

2. Durability and Corrosion Resistance

  • Made from high-quality brass, this charger connector pin is highly durable and resistant to corrosion. This ensures a long service life even in challenging environments, reducing the need for frequent replacements and maintenance.

3. Precision Engineering

  • The AC IEC Brass Connector Pin is manufactured with precise engineering to meet stringent IEC standards. This ensures a secure and stable connection, minimizing the risk of electrical faults and enhancing overall safety in electrical systems.

4. Versatility

  • The ac pins are designed for a wide range of AC applications, making them versatile and suitable for use in various electrical equipment and devices. Their compatibility with standard connectors further broadens their application scope.


Specifications of AC IEC Brass Connector Pin

AC IEC  terminal
Itemdimension(mm)Rated current and function
LN terminal6200A/32A/16A
PE terminal663A/32A/16A
CC terminal3signal
MaterialBrass、Copper
Contact MaterialBeryllium bronze
Plating MaterialGold、silver


FAQs of AC IEC Brass Connector Pin

What is a brass connector pin?

A brass connector pin is a type of electrical contact made from brass, a metal known for its conductivity and corrosion resistance. Brass connector pins are commonly used in various applications, including charger connector pins, due to their reliable performance and durability.

How do I choose the right AC IEC brass connector pin for my application?

When selecting an AC IEC brass connector pin, consider factors such as voltage rating, current capacity, connector size and shape, and compatibility with your specific device or equipment. It's essential to ensure that the connector pin meets the safety and performance requirements of your application.

How can I ensure the safety of AC pin connector?

To ensure safety, it's crucial to inspect AC brass connector pins regularly for signs of damage or wear. Use only compatible charging cables and AC pin connector, and avoid overloading the pins with excessive current to prevent overheating and potential hazards.
