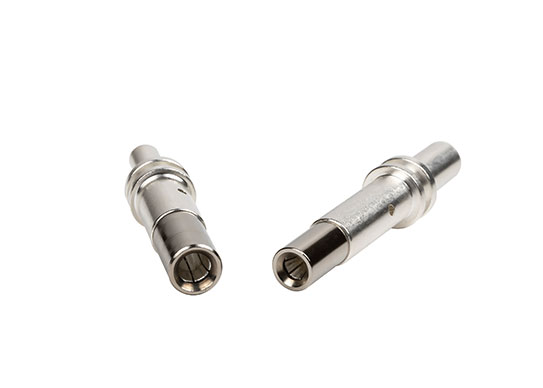

DC CCS Type1 Connect Pins

AP SAE DC terminals comply with SAE J1772 ccs standard and are developed specifically for fast charging and mainly for the North American market. It enables maximum charging flexibility and safe charging.

Features of CCS Type1 Connect Pins


  • Mechanical life: ≧10000 times

  • Comply with SAE J1772 ccs standard

  • High ampacity and low-temperature rise

  • High efficiency of power transmission

  • Soft mating force

Specifications of DC CCS Type1 Connect Pins

Itemdimension(mm)ØRated current and function
LN terminal8200A
PE terminal2.8earthing
CC terminal1.5signal
MaterialBrass, Copper
Contact MaterialBeryllium Bronze
Plating MaterialGold, Silver


AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
